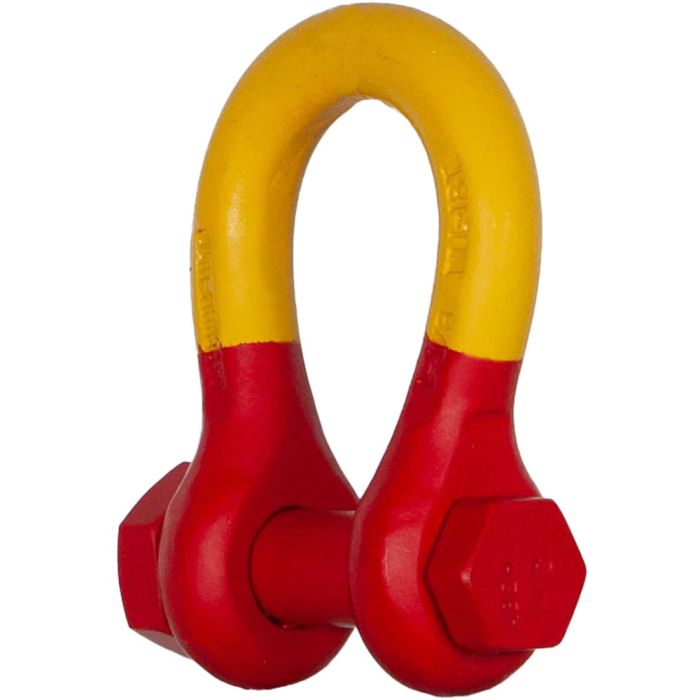

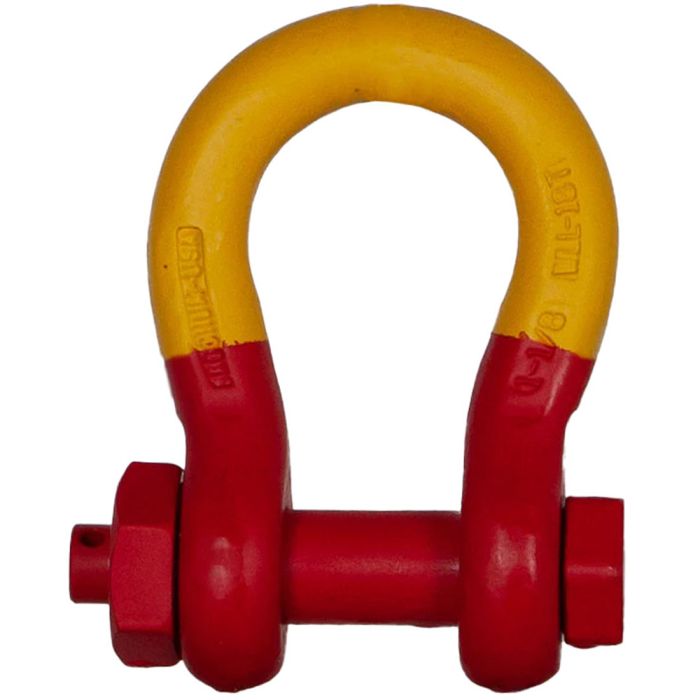

Skookum #320 Alloy Bolt Type Anchor Shackle 3″ – Painted

Features:

• Forged, quenched, and tempered
• Superior strength, hardness, and uniformity
• Size and WLL permanently imprinted
• Material heat codes imprinted on bale & pin

Specifications:

• Size (Shackle Body Thickness): 3″
• Throat Opening (Width Between Ears): 5.00″
• Throat Depth: 13.00″
• Pin Size: 3.25″
• Pin Type: Bolt & Nut
• Finish: Painted
• Material: Alloy Steel
• Working Load Limit: 117.00 tons (234,000 lbs)
• Standards & Certifcations: ASME B30.26-1
• Design Factor 5:1
• USA
