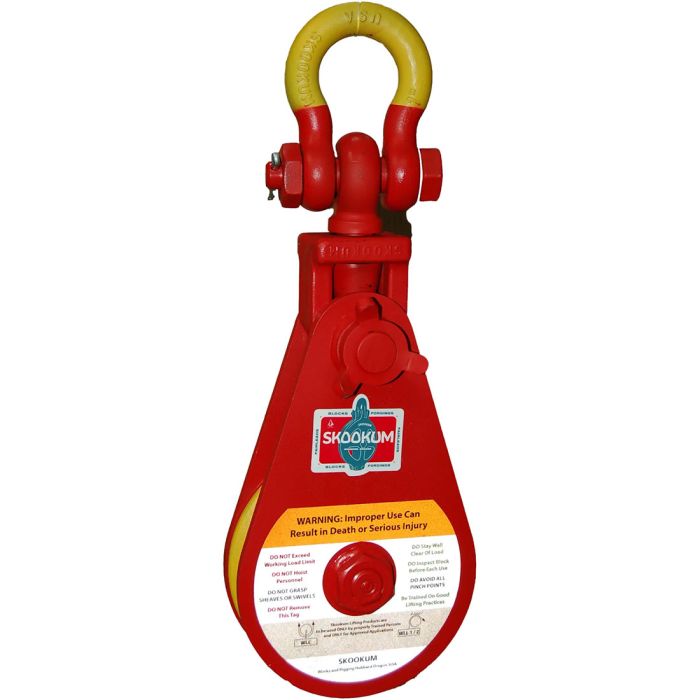

Skookum Alloy Snatch Block with Shackle 20 Ton (8″ Sheave, 1″ – 1-1/8″ Wire Rope)

Features:

• Forged alloy shackles heat treated for toughness
• Interchangeable shackle connector
• Captured attaching pin for convenient reeving while block is suspended
• Tailboard does not include captured attaching pin

Specifications:

• Number of Sheaves: 1
• Sheave Diameter: 8″
• Wire Rope Size: 1″ – 1-1/8″
• Working Load Limit (WLL): 20.00 tons (40,000 lbs)
• End Fitting: Swivel Shackle
• Bearing Type: Bronze Bushing
• ASME B30.26-1 compliant
• Design Factor 4:1
