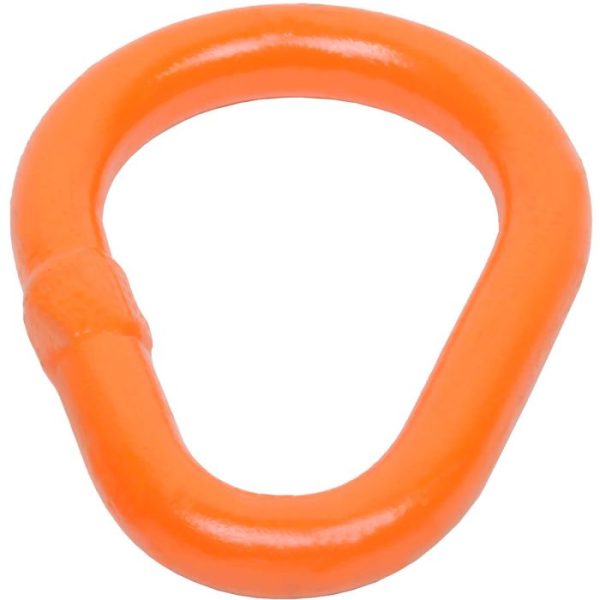

Skookum Forged Alloy Pear Link 3/4″

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size: 3/4″ (19mm)
• Working Load Limit (Design Factor 5:1): 6.15 tons (12,300 lbs)
• Working Load Limit (Design Factor 4:1): 7.69 tons (15,380 lbs)
• Inside Width: 1.50″ x 3.00″
• Inside Length: 4.35″
