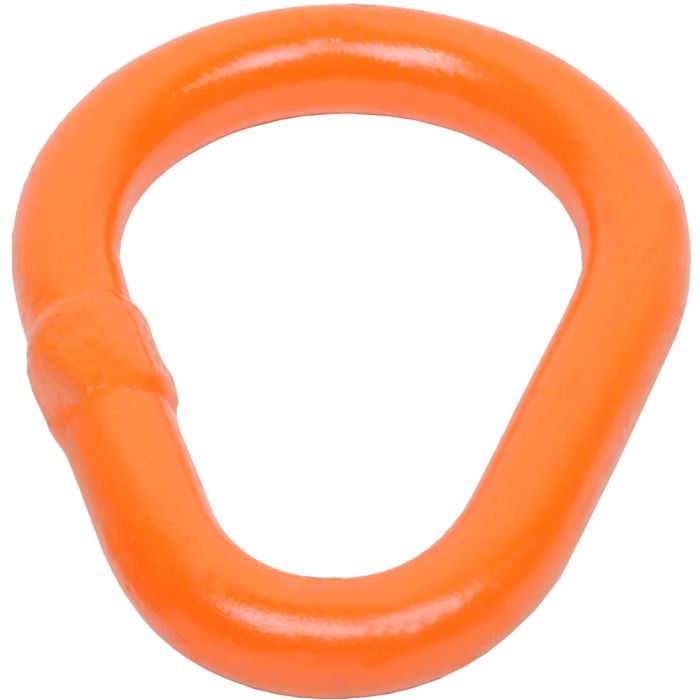

Skookum Forged Alloy Pear Link 5/8″

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size: 5/8″ (16mm)
• Working Load Limit (Design Factor 5:1): 4.50 tons (9000 lbs)
• Working Load Limit (Design Factor 4:1): 5.63 tons (11,260 lbs)
• Inside Width: 1.25″ x 2.50″
• Inside Length: 3.75″
