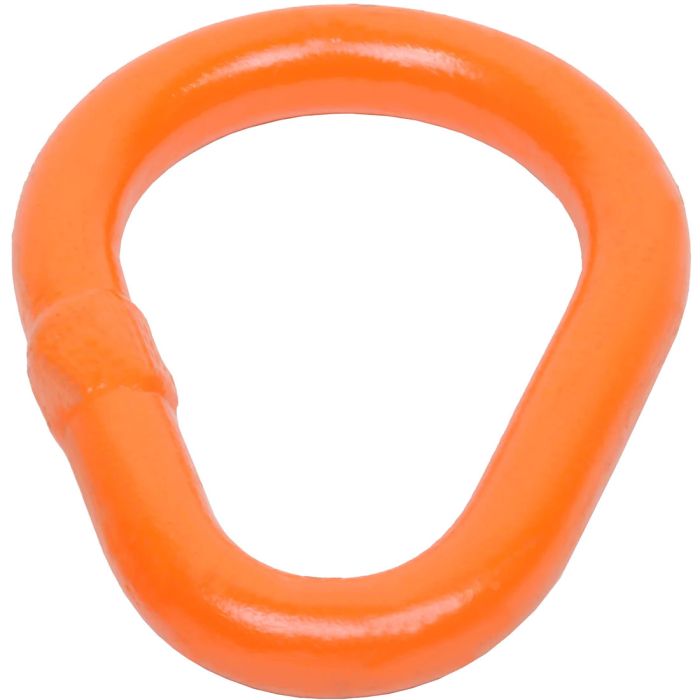

Skookum Forged Alloy Pear Link 7/8″

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size: 7/8″ (22mm)
• Working Load Limit (Design Factor 5:1): 7.50 tons (15,000 lbs)
• Working Load Limit (Design Factor 4:1): 9.38 tons (18,760 lbs)
• Inside Width: 1.75″ x 3.50″
• Inside Length: 5.25″
