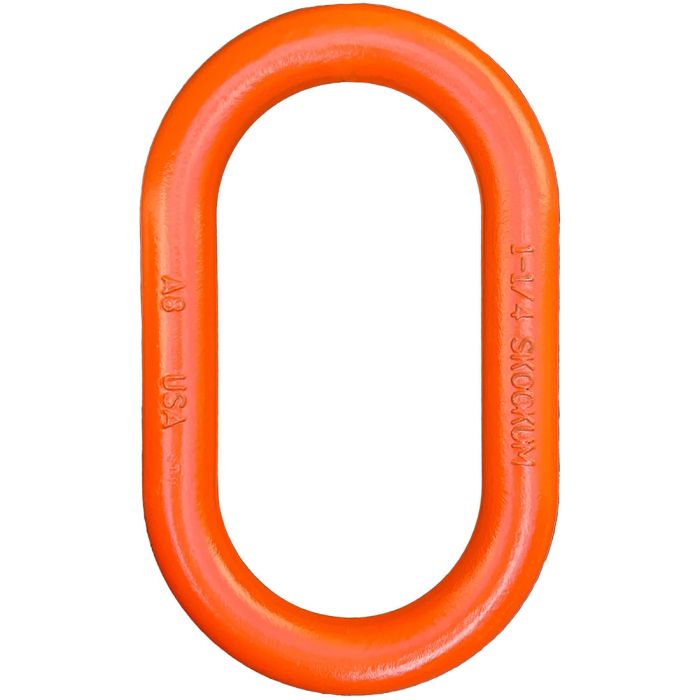

Skookum Grade 80 Forged Alloy Oblong Master Link 1-1/2″ (WLL 77,880 lbs)

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size (link thickness): 1-1/2″ (38mm)
• Working Load Limit (Design Factor 5:1): 31.15 tons (62,300 lbs)
• Working Load Limit (Design Factor 4:1): 38.94 tons (77,880 lbs)
• Inside Width: 5.25″
• Inside Length: 10.50″
