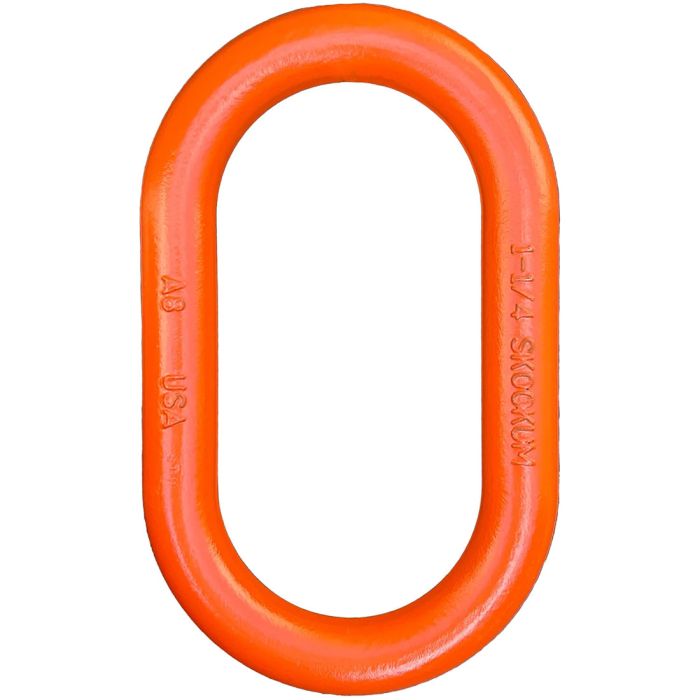

Skookum Grade 80 Welded Alloy Oblong Master Link 6″ (WLL 757,620 lbs)

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size (link thickness): 6″ (152mm)
• Working Load Limit (Design Factor 5:1): 303.05 tons (606,100 lbs)
• Working Load Limit (Design Factor 4:1): 378.81 tons (757,620 lbs)
• Inside Width: 18.00″
• Inside Length: 36.00″
