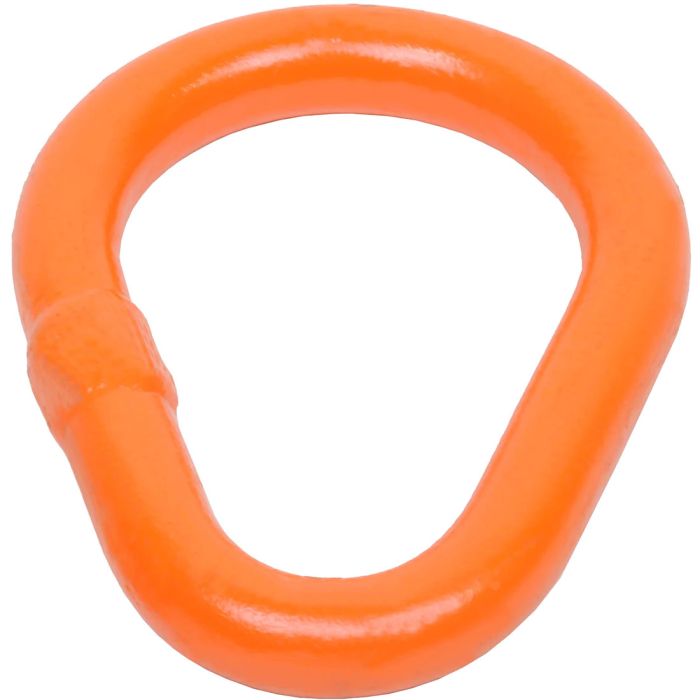

Skookum Welded Alloy Pear Link 1-1/2″

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size: 1-1/2″ (38mm)
• Working Load Limit (Design Factor 5:1): 27.15 tons (54,300 lbs)
• Working Load Limit (Design Factor 4:1): 33.94 tons (67,880 lbs)
• Inside Width: 3.00″ x 6.00″
• Inside Length: 9.00″
