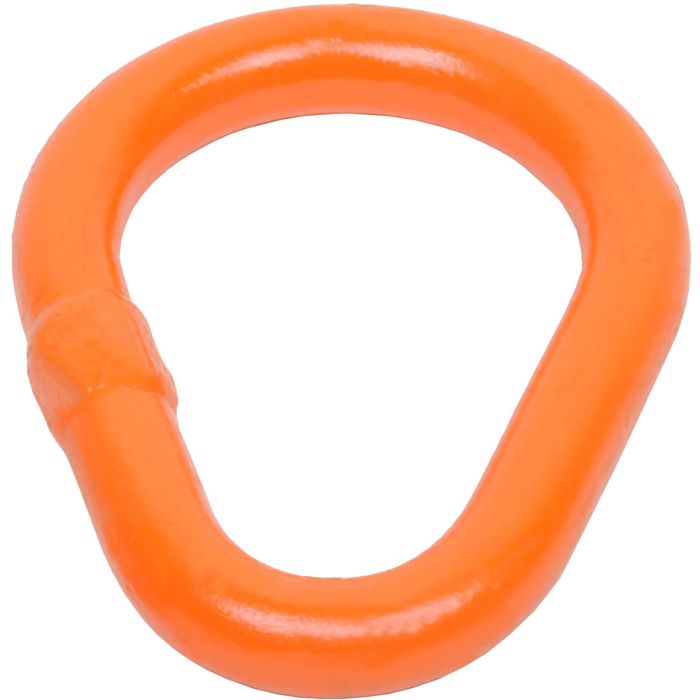

Skookum Welded Alloy Pear Link 2-1/4″

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size: 2-1/4″ (57mm)
• Working Load Limit (Design Factor 5:1): 71.55 tons (143,100 lbs)
• Working Load Limit (Design Factor 4:1): 89.44 tons (178,880 lbs)
• Inside Width: 4.50″ x 9.00″
• Inside Length: 13.50″
