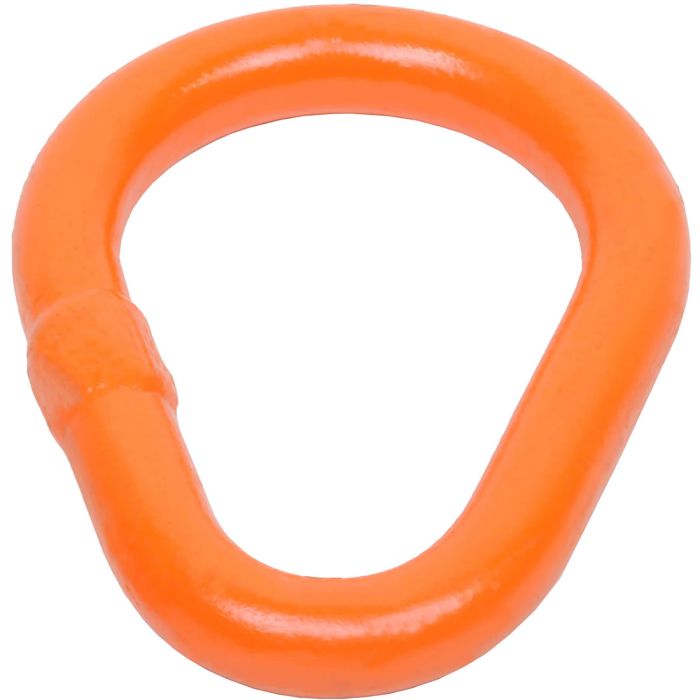

Skookum Welded Alloy Pear Link 2-3/4″

Features:

• Alloy Steel with Orange Finish
• Quenched & Tempered
• Links marked with material heat code for traceability
• Individual Certificate of Conformance* with each link
• Each link is proof tested at the factory two times the working load limit to the Proof Test Load value
  using fixturing IAW ASTM A-952 with a max contact of 60% of the inside width
• Should be used at or below their working load limit

Specifications:

• Size: 2-3/4″ (70mm)
• Working Load Limit (Design Factor 5:1): 108.45 tons (216,900 lbs)
• Working Load Limit (Design Factor 4:1): 135.56 tons (271,120 lbs)
• Inside Width: 5.50″ x 11.00″
• Inside Length: 16.50″
