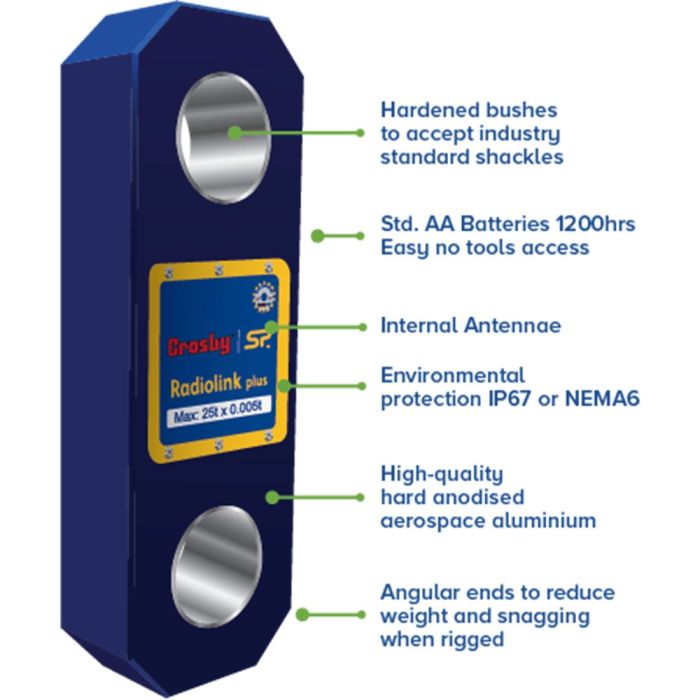

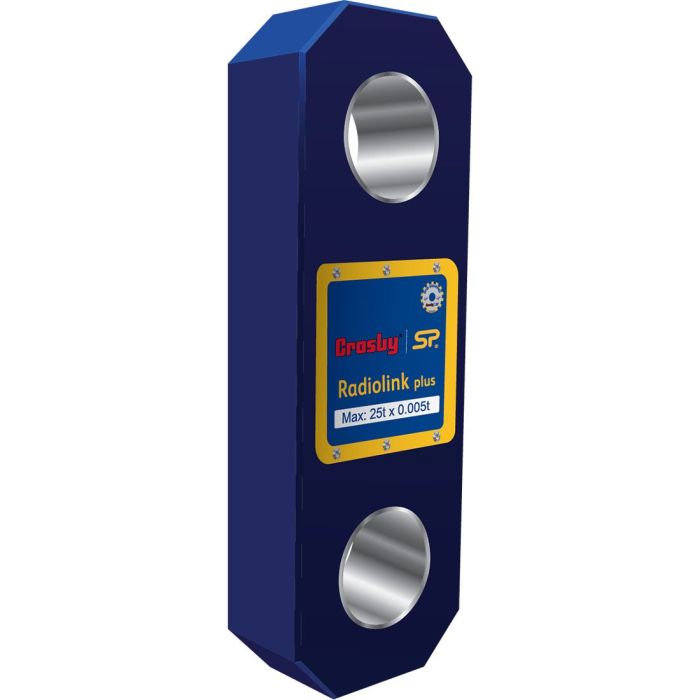

Straightpoint Compound Plus load cells are based on the Straightpoint Radiolink Plus load cells. The main difference is that Compound Plus load cells do not include the SW-HHP handheld display. This allows for a cost effective load monitoring system that can be configured with up to 126 separate load cells, when used with the a PC or tablet running the Straighpoint INSIGHT software.
The Compound Plus is designed to be rigged with Crosby standard shackles – DNV-GL type approved wireless tension load cell capable of weighing and dynamic load monitoring in capacities from 1t to 500t
- Proprietary 2.4 GHz Wireless
- Leading Wireless Range of 700m/2300ft
- Environmentally Sealed to IP67/NEMA6
- 90db Audible Overload Alarm & Overload Counter
- Internal Antennae
- 100 Hz Peak Hold
- Push button Tare
- Complies with ASME B30.26
- 2 year warranty
- Does not include SW-HHP
- Straightpoint INSIGHT software sold separately *Please contact us if more details are needed
