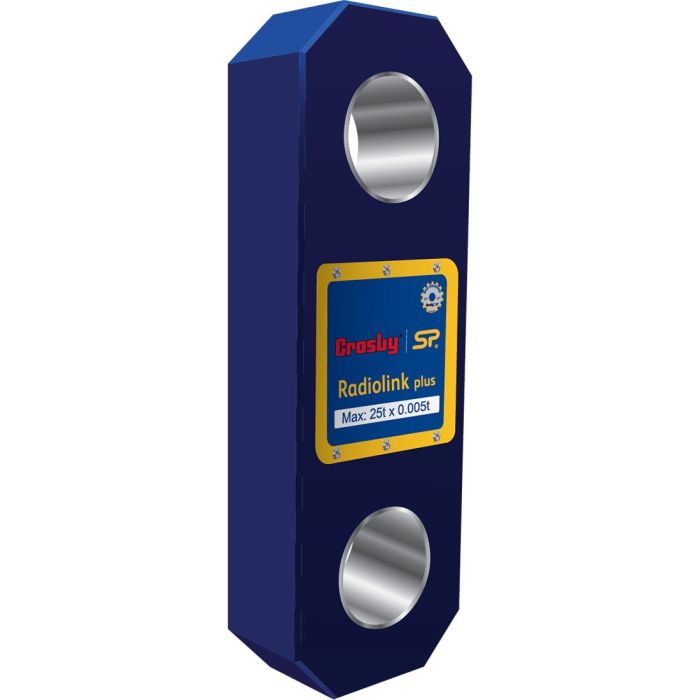

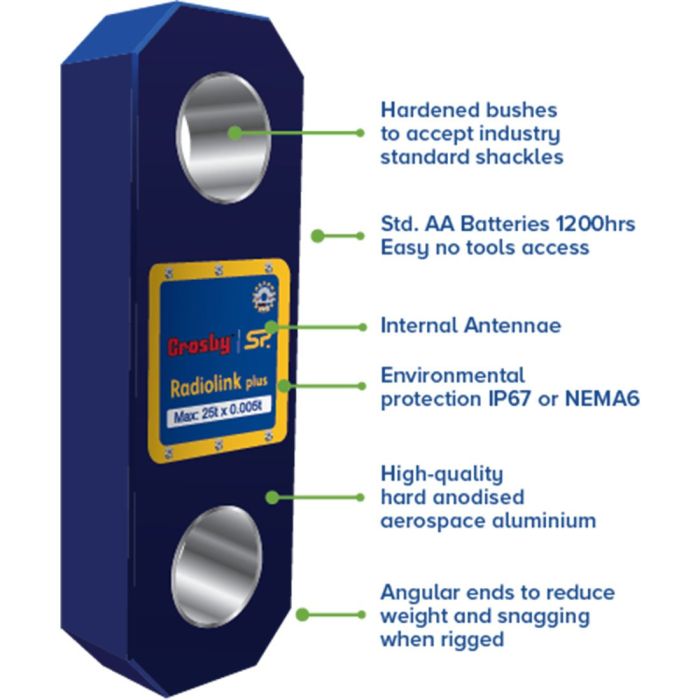

Straightpoint Compound Plus Wireless Dynamometer 25T

Straightpoint Compound Plus load cells are based on the Straightpoint Radiolink Plus load cells. The main difference is that Compound Plus load cells do not include the SW-HHP handheld display. This allows for a cost effective load monitoring system that can be configured with up to 126 separate load cells, when used with the a PC or tablet running the Straighpoint INSIGHT software.

The Compound Plus is designed to be rigged with Crosby standard shackles – DNV-GL type approved wireless tension load cell capable of weighing and dynamic load monitoring in capacities from 1t to 500t

• Proprietary 2.4 GHz Wireless
• Leading Wireless Range of 700m/2300ft
• Environmentally Sealed to IP67/NEMA6
• 90db Audible Overload Alarm & Overload Counter
• Internal Antennae
• 100 Hz Peak Hold
• Push button Tare
• Complies with ASME B30.26
• 2 year warranty
• Does not include SW-HHP
• Straightpoint INSIGHT software sold separately *Please contact us if more details are needed
