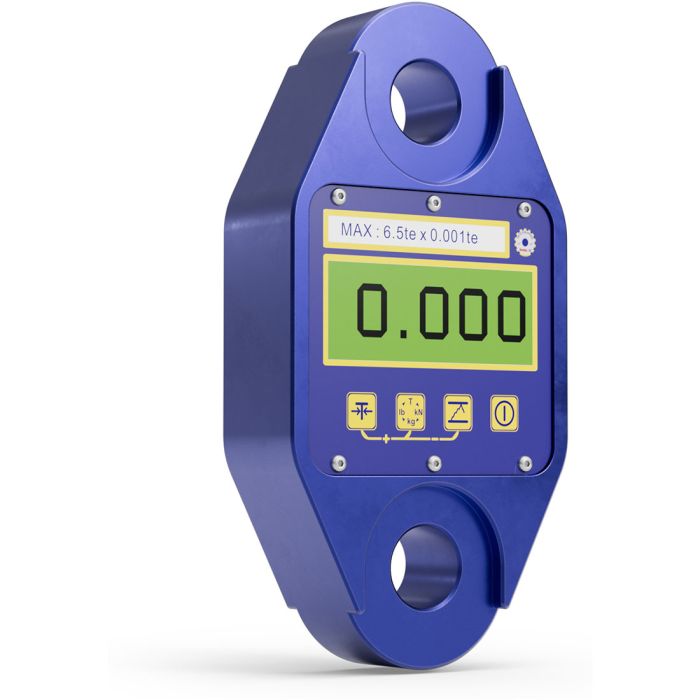

Straightpoint SID6T5 Self-Indicating Dynamometer 6T

Straightpoint’s SID6T5 is the self-indicating version of the well-known product ‘Bluelink’ and is designed to replace outdated mechanical products still in the field. The SID offers advanced features and benefits and provides solutions where close-up load monitoring is required, such as when operating lever or chain hoists at height or lifting vehicle motors.

The advanced microprocessor-based electronics provide the SID with high-speed read rates, extreme resistance to industrial-level noise, and unprecedented stability.

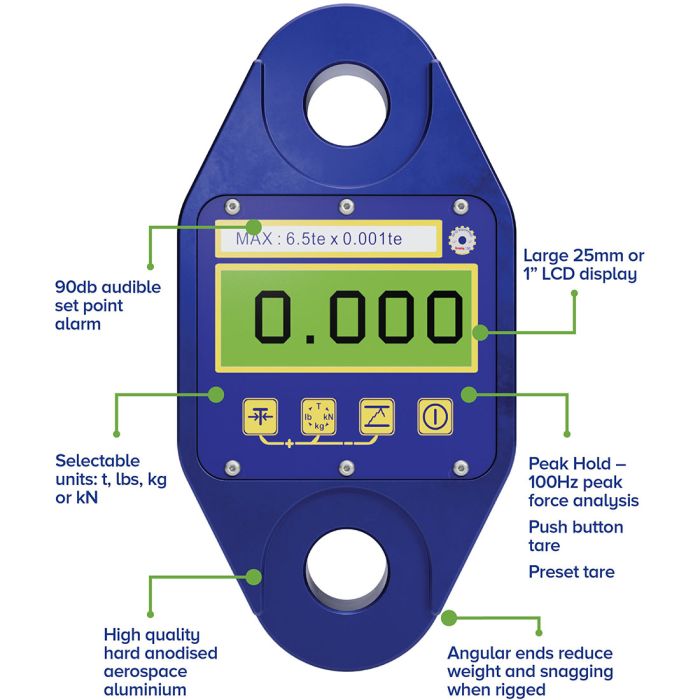

Features:

• Large 1” / 25mm LCD display
• 90db Audible set point alarm
• RS-485 serial output
• Angular ends reduce weight and snagging when rigged
• Design validated by F.E.A.
• Push button Controls:
• Tare and preset tare
• Selectable measurement units (lbs, kg, kN and tonnes)
• 100Hz high-speed peak hold
• Audible set-point alarm
• Overload counter
• 2 year warranty

Specifications:

• Capacity: 6.5te (14,300 lbs)
• Accuracy: +/- 0.2% of full scale
• Display Type: 6 digit 25 mm LCD / 6 digit 1 in LCD
• Operating Temp: -10 to +50° C / 14 to 122° F
• Battery Type: 9v PP3
• Battery Life: 80 hrs continuous
• Protection: IP65 / NEMA 4X
• Material: High-grade aircraft quality aluminum
• Safety Factor: 6:1

Dimensions:

• Overall Length: 8.82″
• Length Between Connection Holes: 6.14″
• Connection Hole Diameter: 1.08″
• Width: 4.45″
• Overall Thickness: 1.73″
