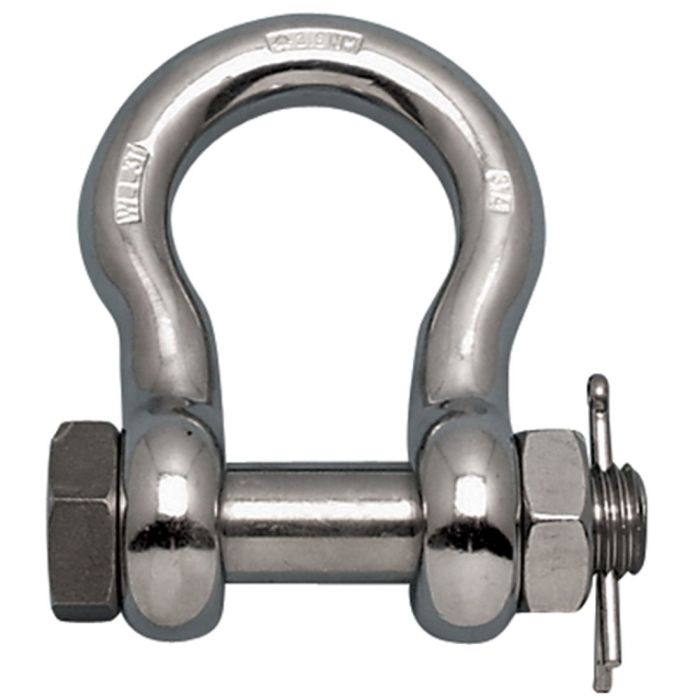

Stainless Steel Bolt Type Anchor Shackle made from grade 316 stainless steel for maximum corrosion resistance and durability making it ideal for marine applications and other corrosive environments.
Specifications:
- Size (Shackle Body Thickness): 1/4″
- Throat Opening (Width Between Ears): 0.47″
- Throat Depth: 1.11″
- Pin Size: 0.31″
- Pin Type: Bolt, Nut, & Cotter
- Finish: Plain
- Material: Type 316 Stainless Steel
- Working Load Limit: 0.50 tons (1000 lbs)
