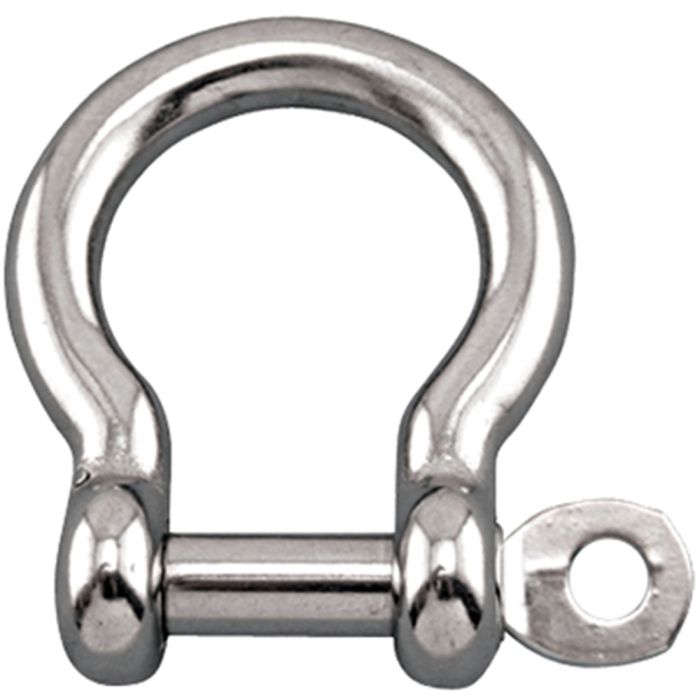

The Suncor Bow Shackle has a captive pin with a self-locking feature so that the pin will not back out. The pin is integral to the shackle body, it is not removable and will not fall out when open. The Bow Shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine applications because the pin can’t be accidentally dropped in the water.
Specifications:
- Size (Shackle Body Thickness): 5/32″
- Throat Opening (Width Between Ears): 0.33″
- Throat Depth: 0.75″
- Pin Size: 0.17″
- Pin Type: Screw Pin
- Finish: Plain
- Material: Type 316 Stainless Steel
- Working Load Limit: 200 lbs
