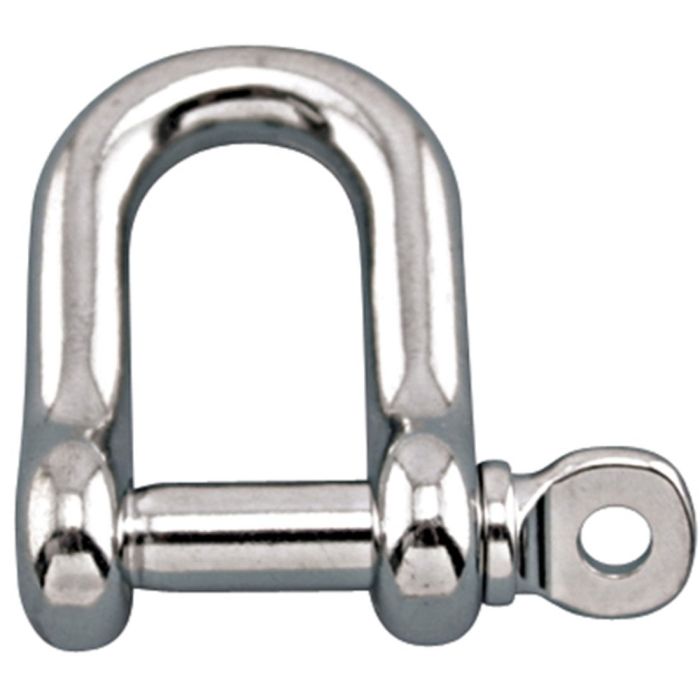

Suncor Captive Screw Pin D Shackle Stainless Steel (T316) 5/32″ – Plain

Stainless Steel Screw Pin D Shackle with Captive Pin made from grade 316 stainless steel for maximum corrosion resistance and durability making it ideal for marine applications and other corrosive environments. Features a captive pin that is not removable and will not fall out when shackle is opened, making it ideal for industrial or marine applications. The pin is also self-locking so it will not back out.

Specifications:

• Size (Shackle Body Thickness): 5/32″
• Throat Opening (Width Between Ears): 0.32″
• Throat Depth: 0.55″
• Pin Size: 0.17″
• Pin Type: Captive Screw Pin
• Finish: Plain
• Material: Type 316 Stainless Steel
• Working Load Limit: 0.10 tons (200 lbs)
