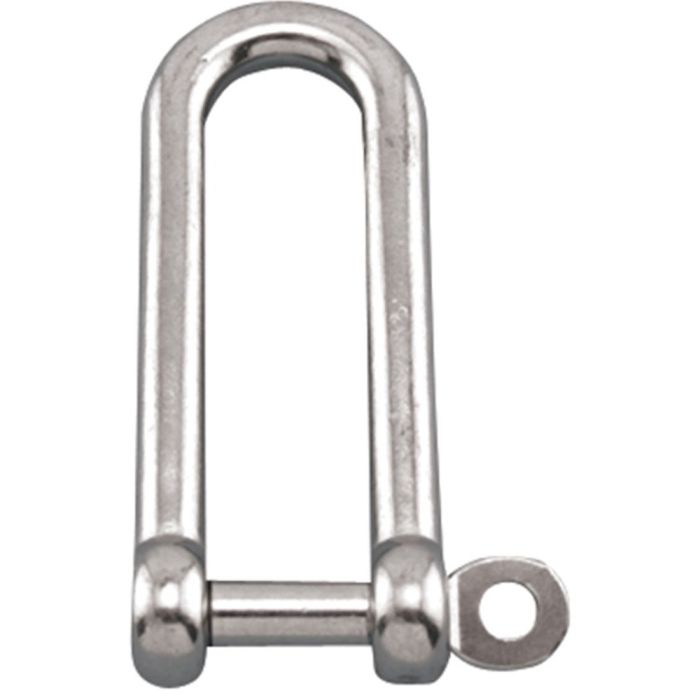

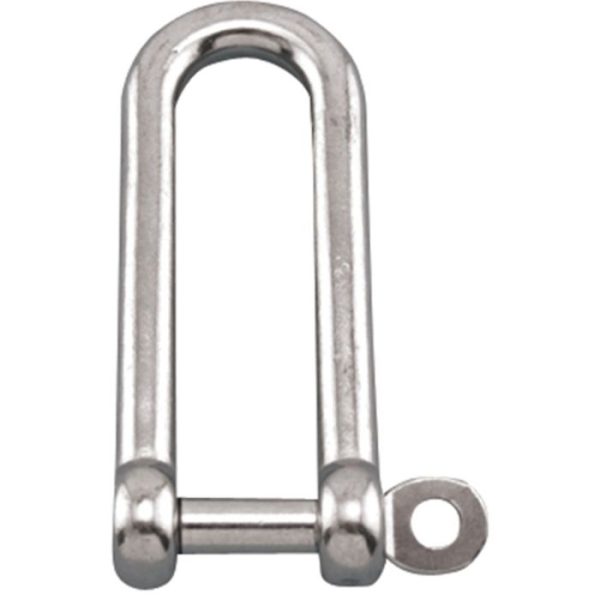

Suncor Captive Screw Pin Long D Shackle Stainless Steel (T316) 3/16″ – Plain

Stainless Steel Screw Pin Long D Shackle with Captive Pin made from grade 316 stainless steel for maximum corrosion resistance and durability making it ideal for marine applications and other corrosive environments. Features a captive pin that is not removable and will not fall out when shackle is opened, making it ideal for industrial or marine applications. The pin is also self-locking so it will not back out.

Specifications:

• Size (Shackle Body Thickness): 3/16″
• Throat Opening (Width Between Ears): 0.39″
• Throat Depth: 1.47″
• Pin Size: 0.19″
• Pin Type: Captive Screw Pin
• Finish: Plain
• Material: Type 316 Stainless Steel
• Working Load Limit: 0.25 tons (500 lbs)
