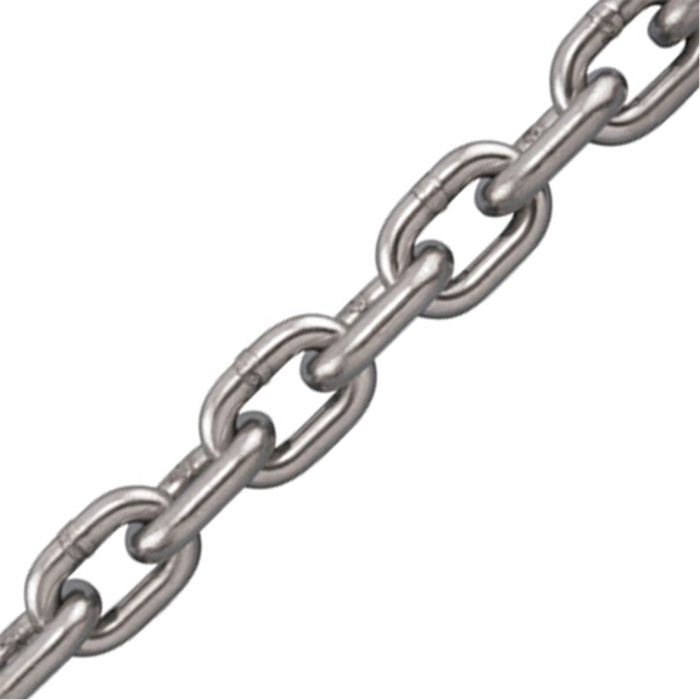

Suncor G50 Stainless Steel (T316) Lifting Chain S5 1/4″ x 275′

Suncor’s calibrated Grade 50 Lifting Chain is made to grade 80 dimensions. Working load limits are based on gradual pull and not shock loads. Make sure that all components in the assembly are overhead lifting rated and have the same working load limits. Never exceed the working load limit (WLL).

Specifications:

• Size: 1/4″ (9/32)
• Length: 275 ft
• Chain Link Inside Width: 0.38″
• Chain Link Inside Length: 0.85″
• Finish: Plain
• Material: 316L Stainless Steel
• Working Load Limit: 2200 lbs
• Breaking Load: 8800 lbs
• Specification: MIL-DTL-32655
• Rated for overhead lifting
• Not for use with chain hoists
• USA
