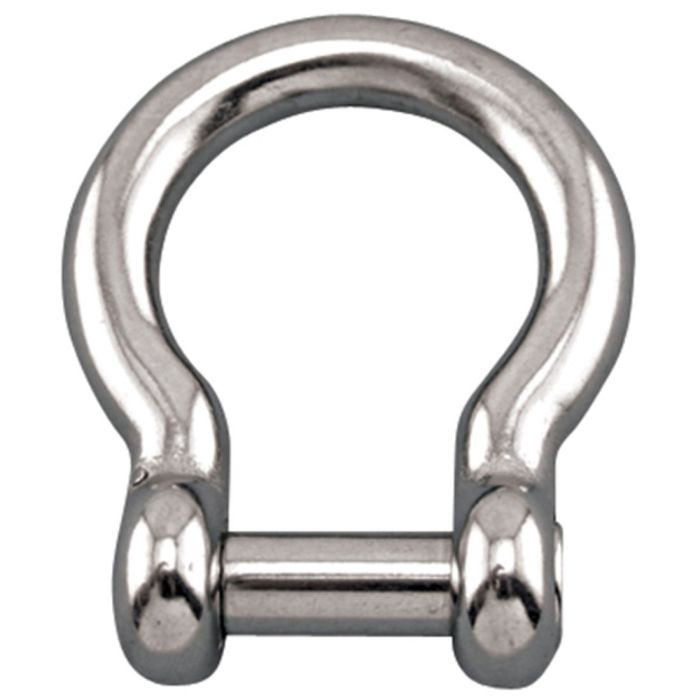

Stainless Steel Screw Pin Bow Shackle with No Snag Pin made from grade 316 stainless steel for maximum corrosion resistance and durability making it ideal for marine applications and other corrosive environments. Features a pin that sits flush with the shackle body.
Specifications:
- Size (Shackle Body Thickness): 1″
- Throat Opening (Width Between Ears): 1.95″
- Throat Depth: 4.42″
- Pin Size: 0.96″
- Pin Type: Flush Screw Pin
- Finish: Plain
- Material: Type 316 Stainless Steel
- Working Load Limit: 3.00 tons (6000 lbs)
