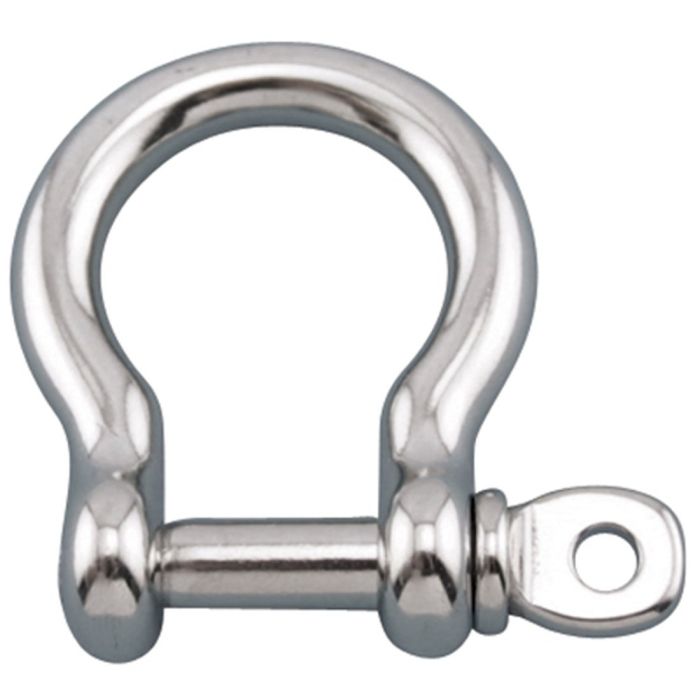

Stainless Steel Screw Pin Bow Shackle made from grade 316 stainless steel for maximum corrosion resistance and durability making it ideal for marine applications and other corrosive environments.
Specifications:
- Size (Shackle Body Thickness): 5/32″
- Throat Opening (Width Between Ears): 0.33″
- Throat Depth: 0.75″
- Pin Size: 0.16″
- Pin Type: Screw Pin
- Finish: Plain
- Material: Type 316 Stainless Steel
- Working Load Limit: 0.10 tons (200 lbs)
