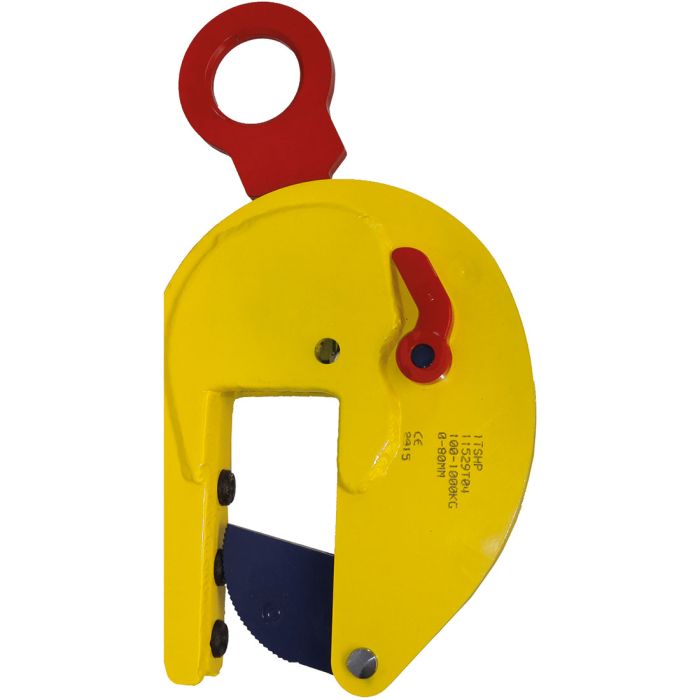

Terrier 1.5 Ton TSHP Vertical Lifting Clamp (0″ – 3.14″ Grip Range)

Features:

• For vertical lifting, handling and transporting of Holland Profile (HP) ship building structures, steel plates and structures
• Can also be used as a “big-jaw” clamp
• Lifting of longer sections should be done with a spreader beam
• Standard with 3 pivots for extra powerful clamping force
• Lightweight, easy-to-handle design, heavy-duty welded shell body
• Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
• Clamp can lock in both open and closed positions
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 37 HRC / 345 Hb ✻

Specifications:

• Working Load Limit: 3300 lbs (1.50 tons)
• Jaw Opening: 0″ – 3.14″
• Eye Diameter: 2.76″
• Eye Thickness: 0.63″
• Made in Holland
