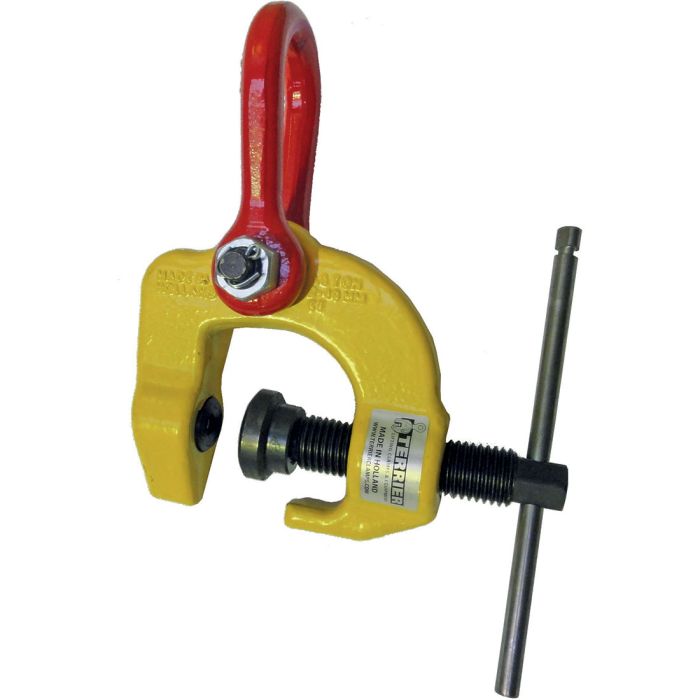

Terrier 1 Ton TSCC Screw Clamp (0″ – 1.57″ Grip Range)

Features:

• For vertical and horizontal lifting and transportation of a large variety of steel structures
• Can also be attached upside down and be used as a (temporary) lifting point
• Special universal design ensures multi-purpose application of lifting steel structures
• Fitted with a moveable cam on the thread spindle which provides a powerful clamping force
• Equipped with a safety screw spindle mechanism to prevent slipping during lifting
• Lightweight design for easy handling
• Tough quality heavy duty drop forged body
• Forged alloy components, where required
• No Minimum Working Load Limit (WLL)

Specifications:

• Working Load Limit: 2200 lbs (1.00 tons)
• Jaw Opening: 0″ – 1.57″
• Handle Inside Width: 1.81″
• Handle Diameter: 0.63″
• Tightening Forces: at least 40NM (25.815 lb-ft, 309.78 lb-in)
• Made in Holland
