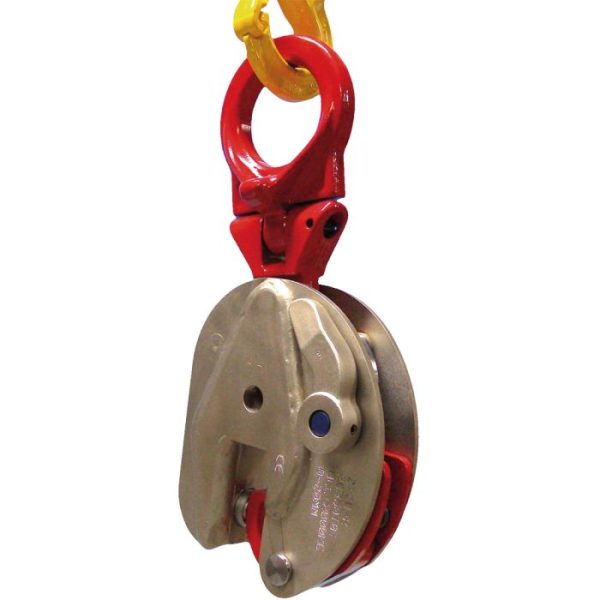

Terrier 1 Ton TSE-R Vertical Lifting Clamp (0″ – 1.00″ Grip Range)

Features:

• For vertical lifting, transporting, and turning of stainless steel plates and structures
• Pivot and cam are made of stainless steel
• Body and lock lever are nickel plated to prevent corrosion due to carbon contamination
• TSE-R features standard lifting shackle
• Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
• Clamp can lock in both open and closed positions
• Lightweight, easy-to-handle design, heavy-duty welded shell body
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 30 HRC / 277 Hb ✻

Specifications:

• Working Load Limit: 2200 lbs (1.00 tons)
• Jaw Opening: 0″ – 1.00″
• Eye Diameter: 1.77″
• Eye Thickness: 0.59″
• Made in Holland
