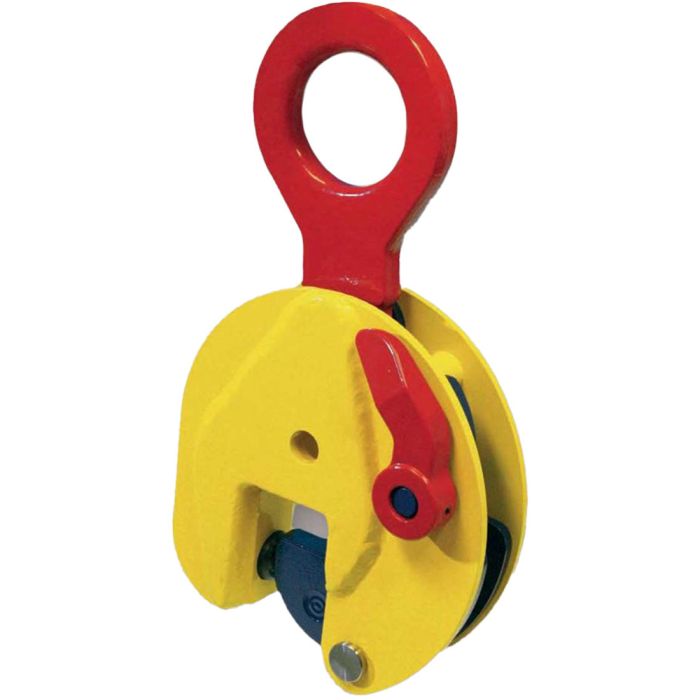

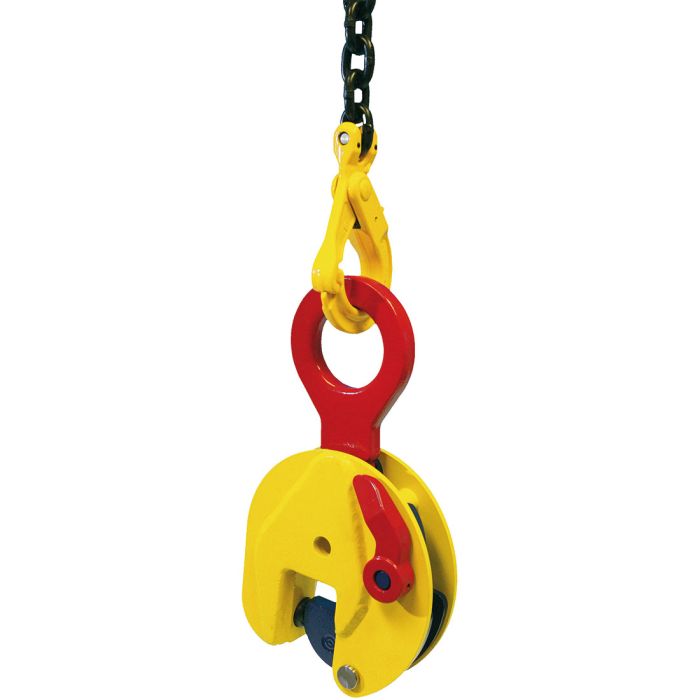

Features:
- For vertical lifting, transporting and turning of all steel plates and structures
- Supplied with enlarged jaw opening
- Lightweight, easy-to-handle design, heavy-duty welded shell body
- Equipped with a safety mechanism ensures no slipping when lifting force is applied or when lowering the load
- Clamp can lock in both open and closed positions
- Minimum Working Load Limit is 10% of maximum Working Load Limit
- ✻ Note: Surface hardness of the material lifted must not exceed 37 HRC / 345 Hb ✻
Specifications:
- Working Load Limit: 55,000 lbs (25.00 tons)
- Jaw Opening: 3.14″ – 5.90″
- Eye Diameter: 3.94″
- Eye Thickness: 2.60″
- Made in Holland
