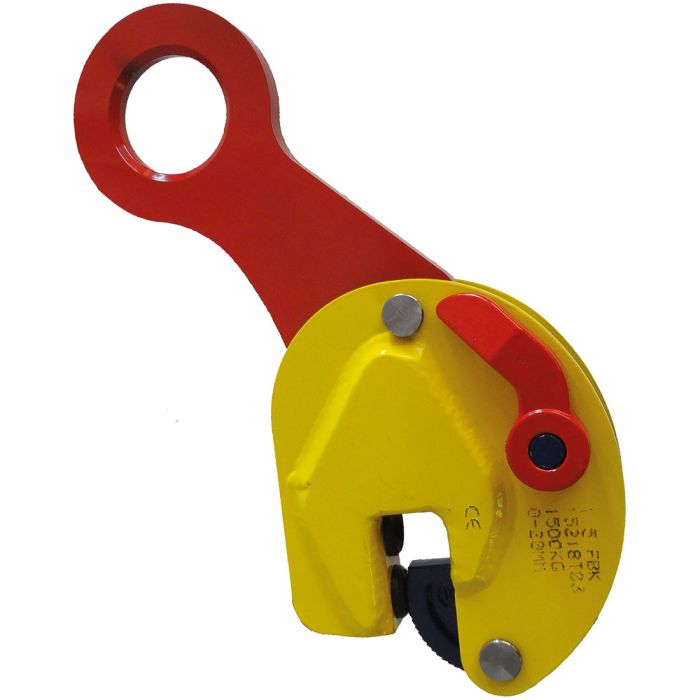

The Terrier FBK Beam Lifting Clamp is specially designed for vertical handling and precise in-position lifting of steel (H) beams, profiles, and structures. It’s ideal for applications where the load must remain perfectly balanced during transportation and stacking, such as when sawing or constructing steel beams.
Features:
- Special lifting shackle places the gravity centre of the beam or load directly beneath the lifting shackle
- Maintaining the beam’s equilibrium for easy stacking and positioning
- Always equipped with a safety mechanism to prevent slipping during lifting and lowering
- Clamp can lock in both open and closed positions
- Lightweight, easy-to-handle design, heavy-duty welded shell body
- Minimum Working Load Limit is 10% of maximum Working Load Limit
Specifications:
- Working Load Limit: 6600 lbs (3.00 tons)
- Jaw Opening: 0″ – 1.00″
- Eye Diameter: 2.76″
- Eye Thickness: 0.79″
- Made in Holland
