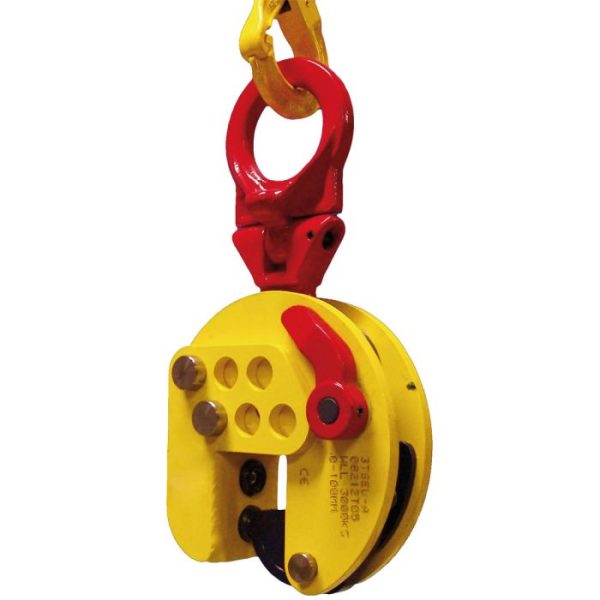

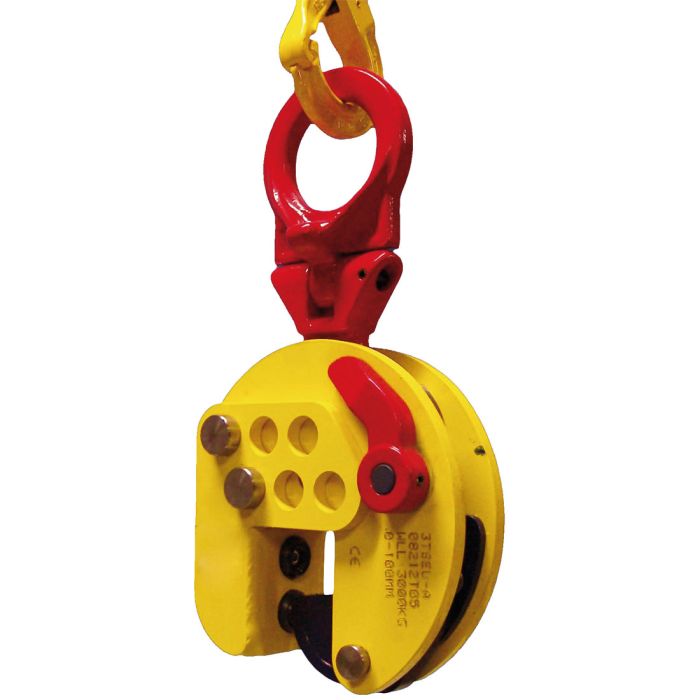

Terrier 3 Ton TSEU-A Vertical Lifting Clamp (0″ – 3.74″ Grip Range)

Features:

• For vertical lifting, transporting and turning of all steel plates and structures from all positions
• Adjustable by steps of 1.18″
• Articulated lifting shackle for flexible lifting at various angles
• Secure grip even with side loading up to 90 degrees, with WLL reduction for angles over 45 degrees
• Ability to lift longer plates without a spreader beam when using two clamps on a two-legged chain sling
• Equipped with a safety mechanism to prevent slippage during lifting and lowering
• Features 2 pivots for extra clamping force and can lock in both open and closed positions
• Lightweight, easy-to-handle design, heavy-duty welded shell body
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 37 HRC / 345 Hb ✻

Specifications:

• Working Load Limit: 6600 lbs (3.00 tons)
• Jaw Opening: 0″ – 3.74″
• Eye Diameter: 2.76″
• Eye Thickness: 0.63″
• Made in Holland
