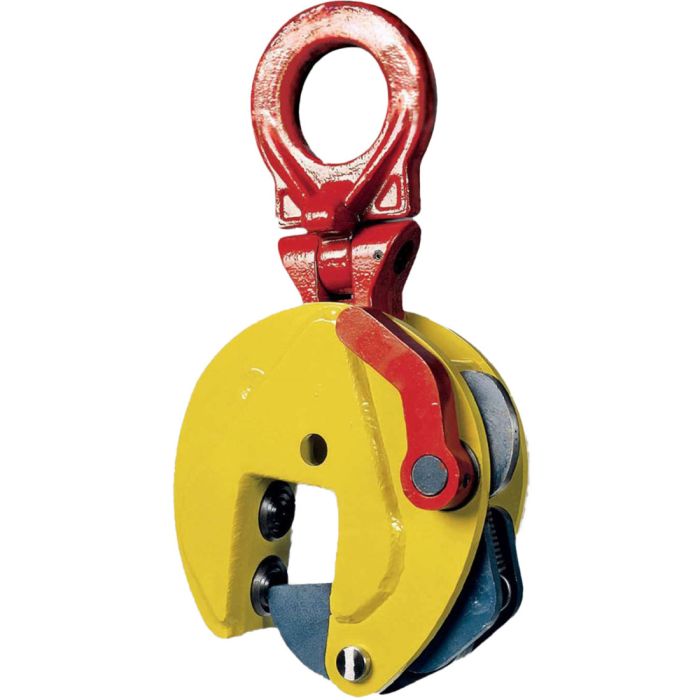

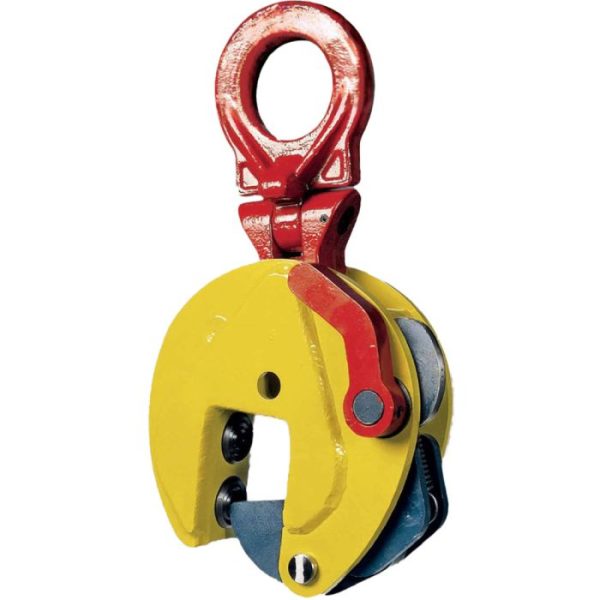

Terrier 3 Ton TSHPU Vertical Lifting Clamp (0″ – 1.37″ Grip Range)

Features:

• For vertical lifting, handling and transporting of Holland Profile (HP) ship building structures from all positions
• With articulated lifting shackle for universal lifting flexibility at various angles
• Equipped with an articulated lifting shackle for flexible lifting angles up to 90 degrees (for lifting at angles over 45 degrees, check WLL reduction)
• Standard with 2 pivots for extra powerful clamping force
• Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
• Clamp can lock in both open and closed positions
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 37 HRC / 345 Hb ✻

Specifications:

• Working Load Limit: 6600 lbs (3.00 tons)
• Jaw Opening: 0″ – 1.37″
• Eye Diameter: 2.76″
• Eye Thickness: 0.63″
• Made in Holland
