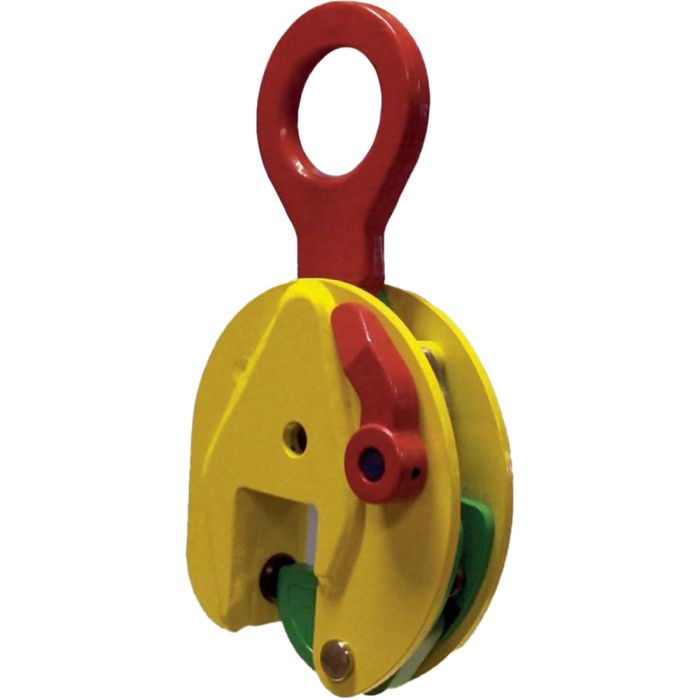

Features:
- For vertical lifting, transporting, and turning of all steel plates with a surface hardness of max. 50 HRC
- Equipped with an extra hardened pivot and cam
- TSE-H features standard lifting shackle
- Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
- Clamp can lock in both open and closed positions
- Lightweight, easy-to-handle design, heavy-duty welded shell body
- Minimum Working Load Limit is 10% of maximum Working Load Limit
- ✻ Note: Surface hardness of the material lifted must not exceed 50 HRC / 485 Hb ✻
Specifications:
- Working Load Limit: 9900 lbs (4.50 tons)
- Jaw Opening: 0″ – 1.77″
- Eye Diameter: 2.76″
- Eye Thickness: 0.79″
- Made in Holland
