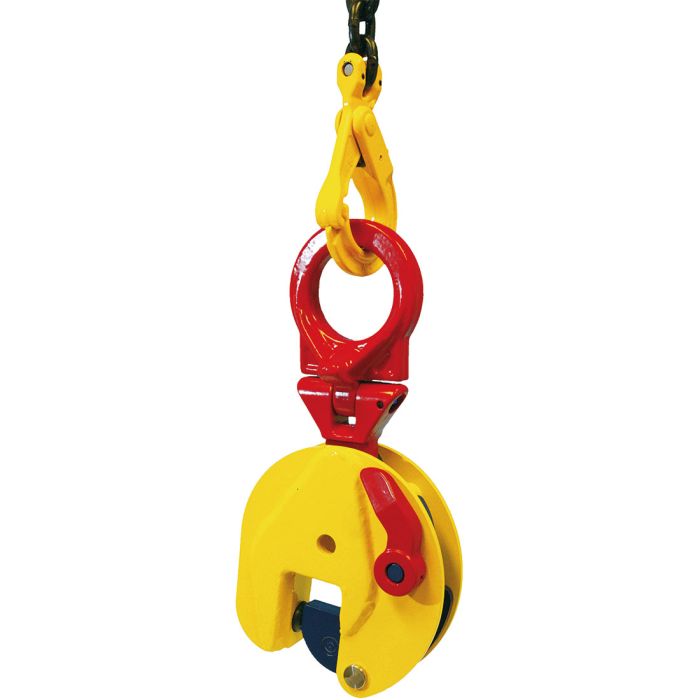

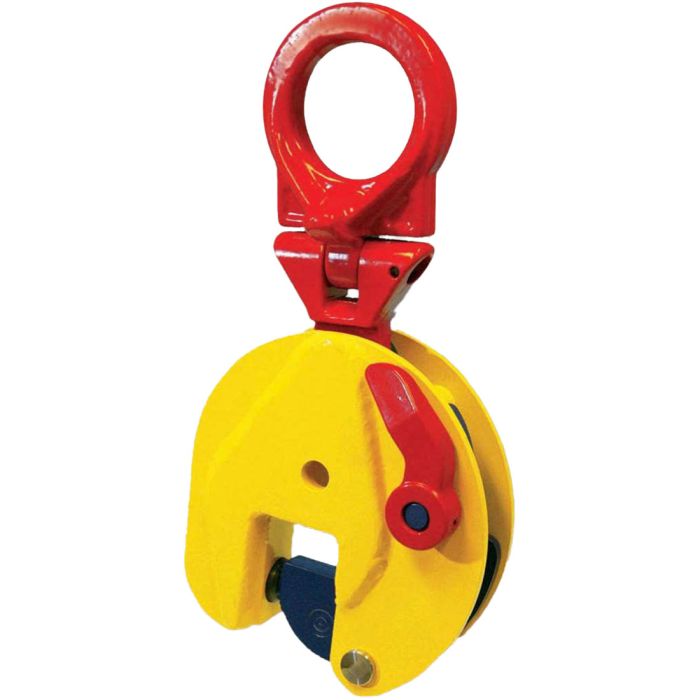

Terrier 4.5 Ton TSEU Vertical Lifting Clamp (0″ – 1.77″ Grip Range)

Features:

• For vertical lifting, transporting and turning of all steel plates and structures from all positions
• With articulated lifting shackle for universal lifting flexibility at various angles
• Equipped with an articulated lifting shackle for flexible lifting angles up to 90 degrees (for lifting at angles over 45 degrees, check WLL reduction)
• Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
• Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
• Clamp can lock in both open and closed positions
• Tough quality heavy-duty welded shell body
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 37 HRC / 345 Hb ✻

Specifications:

• Working Load Limit: 9900 lbs (4.50 tons)
• Jaw Opening: 0″ – 1.77″
• Eye Diameter: 2.76″
• Eye Thickness: 0.79″
• Made in Holland
