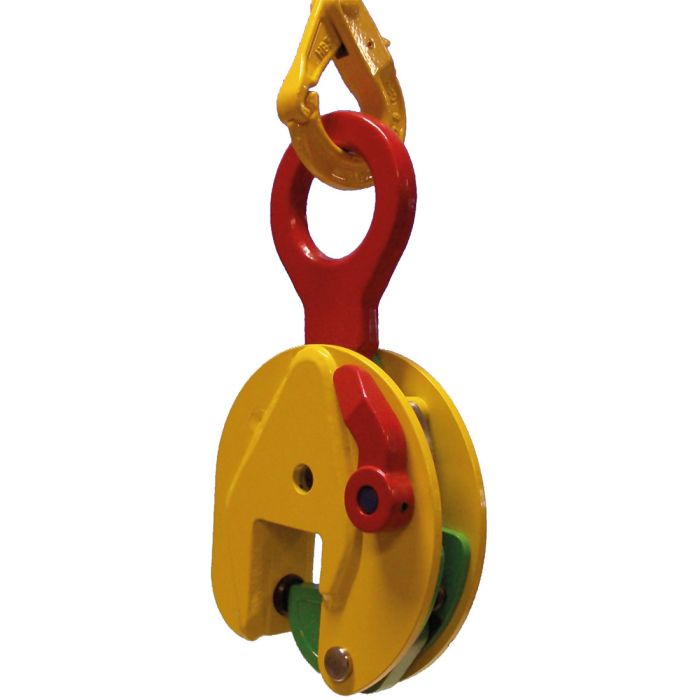

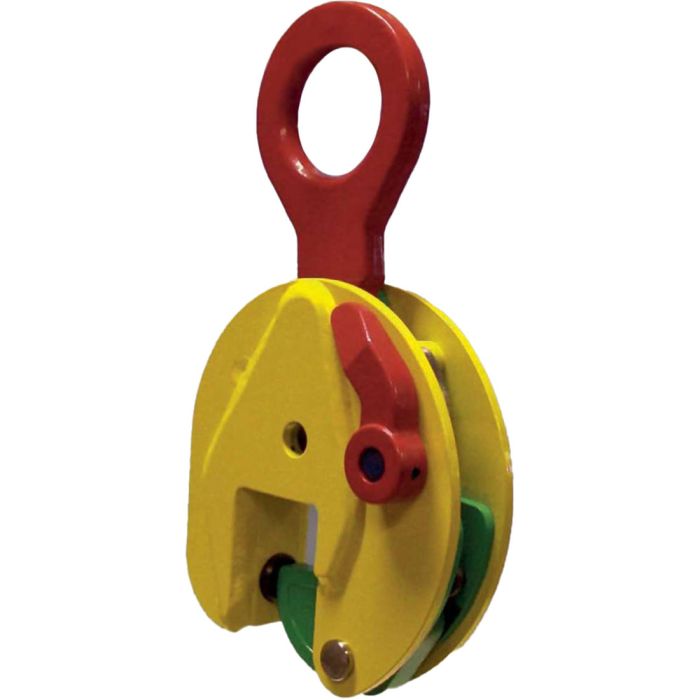

Terrier 7.5 Ton TSEU-H Vertical Lifting Clamp (0″ – 2.16″ Grip Range)

Features:

• For vertical lifting, transporting, and turning of all steel plates with a surface hardness of max. 50 HRC
• Equipped with an extra hardened pivot and cam
• TSEU-H features articulated lifting shackle for universal lifting flexibility at various angles
• Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
• Clamp can lock in both open and closed positions
• Lightweight, easy-to-handle design, heavy-duty welded shell body
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 50 HRC / 485 Hb ✻

Specifications:

• Working Load Limit: 16,500 lbs (7.50 tons)
• Jaw Opening: 0″ – 2.16″
• Eye Diameter: 3.07″
• Eye Thickness: 1.26″
• Made in Holland
