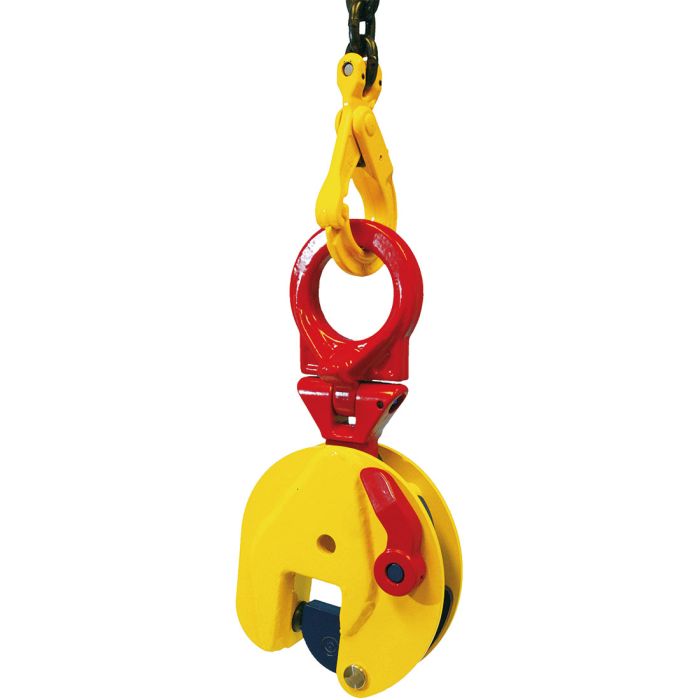

Terrier 7.5 Ton TSEU Vertical Lifting Clamp (0″ – 2.16″ Grip Range)

Features:

• For vertical lifting, transporting and turning of all steel plates and structures from all positions
• With articulated lifting shackle for universal lifting flexibility at various angles
• Equipped with an articulated lifting shackle for flexible lifting angles up to 90 degrees (for lifting at angles over 45 degrees, check WLL reduction)
• Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
• Equipped with a safety mechanism that prevents slippage during lifting and lowering operations
• Clamp can lock in both open and closed positions
• Tough quality heavy-duty welded shell body
• Minimum Working Load Limit is 10% of maximum Working Load Limit
• ✻ Note: Surface hardness of the material lifted must not exceed 37 HRC / 345 Hb ✻

Specifications:

• Working Load Limit: 16,500 lbs (7.50 tons)
• Jaw Opening: 0″ – 2.16″
• Eye Diameter: 3.07″
• Eye Thickness: 1.26″
• Made in Holland
