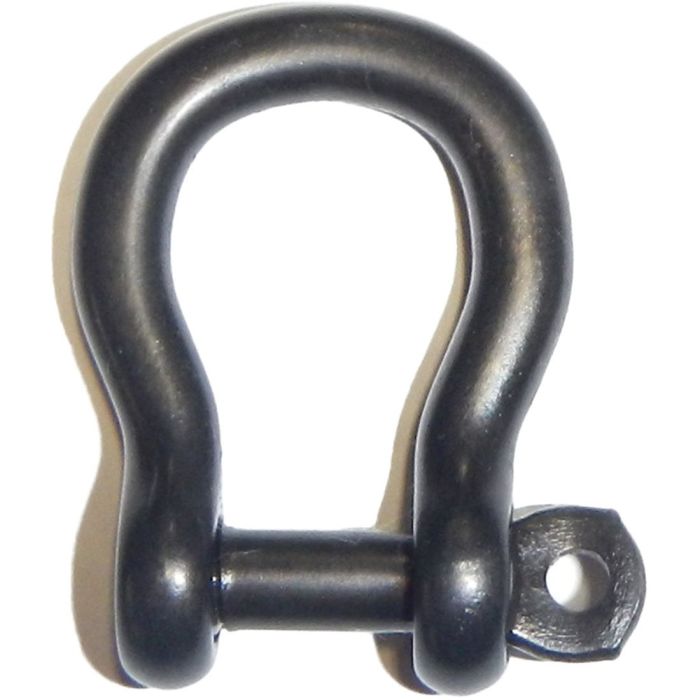

Wichard Captive Pin Bow Shackle Stainless Steel (T316) 3/16″ – Black

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• Pin is connected to the body at all times even when opened
• Pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• ***Only for industrial applications***

Specifications:

• Size (Shackle Body Thickness): 3/16″ (5mm)
• Throat Depth: 0.91″ (23mm)
• Throat Opening: 0.39″ (10mm)
• Pin Size: 0.24″ (6mm)
• Pin Type: Captive Screw Pin
• Material: 316 Stainless Steel
• Working Load Limit: 660 lbs (300 kg)
