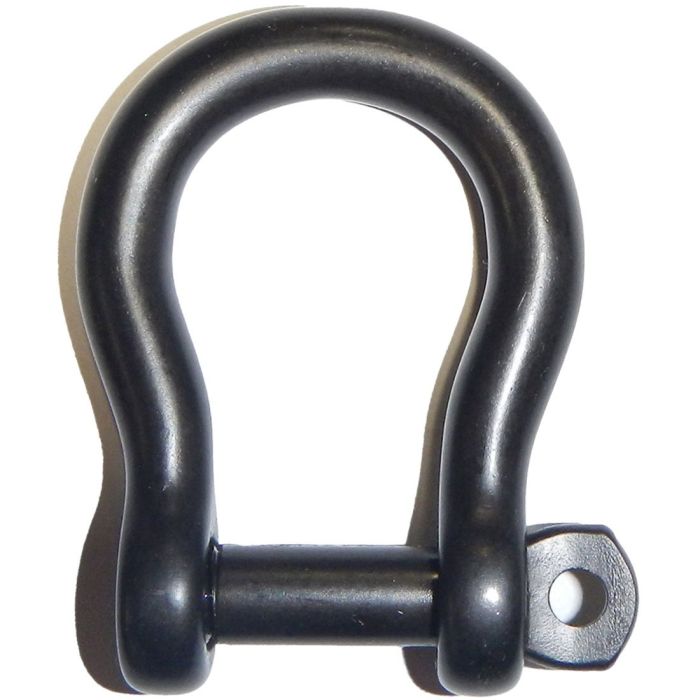

Wichard Captive Pin Bow Shackle Stainless Steel (T316) 5/16″ – Black

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• Pin is connected to the body at all times even when opened
• Pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• ***Only for industrial applications***

Specifications:

• Size (Shackle Body Thickness): 5/16″ (8mm)
• Throat Depth: 1.46″ (37mm)
• Throat Opening: 0.63″ (16mm)
• Pin Size: 0.35″ (9mm)
• Pin Type: Captive Screw Pin
• Material: 316 Stainless Steel
• Working Load Limit: 1628 lbs (740 kg)
