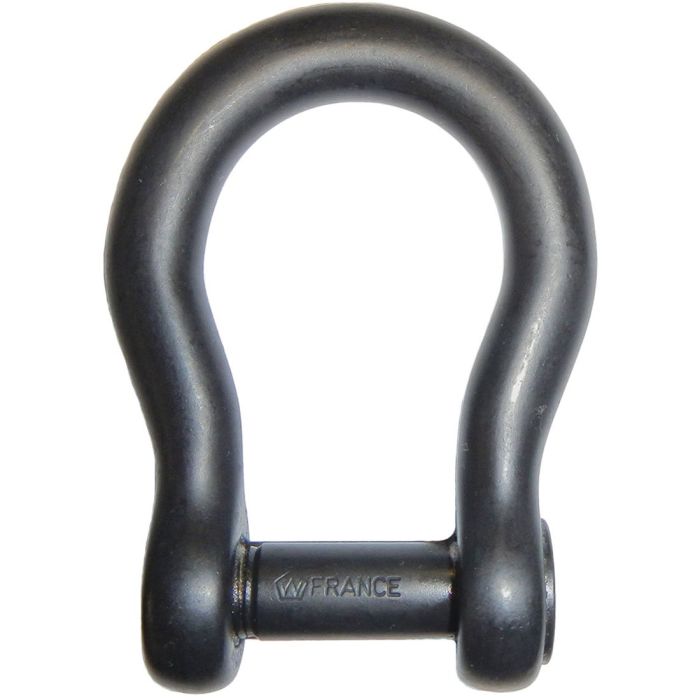

Wichard Self-Locking Allen Bow Shackl Stainless Steel (T316) 15/32″ – Black

The Wichard’s Allen Head Pin Bow Shackle is designed with a head pin does not stick out from the shackle’s body, thus eliminating any risk of snagging.

Features:

• Self-locking allen head pin bow shackle forged in grade 316L stainless steel
• Pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• ***Only for industrial applications***

Specifications:

• Size (Shackle Body Thickness): 15/32″ (12mm)
• Throat Depth: 2.17″ (55mm)
• Throat Opening: 0.94″ (24mm)
• Pin Type: Self-Locking Screw Pin
• Material: 316 Stainless Steel
• Working Load Limit: 2640 lbs (1200 kg)
