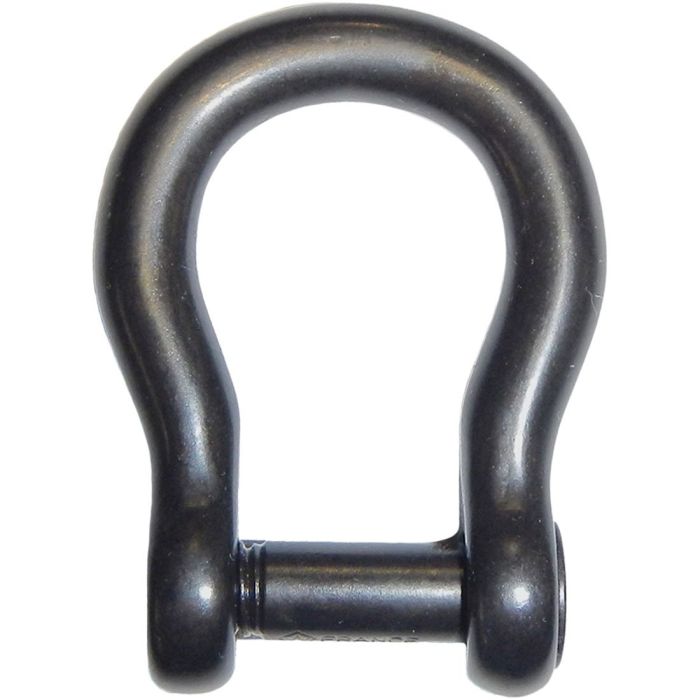

The Wichard’s Allen Head Pin Bow Shackle is designed with a head pin does not stick out from the shackle’s body, thus eliminating any risk of snagging.
Features:
- Self-locking allen head pin bow shackle forged in grade 316L stainless steel
- No risks of loose due to vibrations
- Outstanding working and breaking loads
- Fatigue resistance and corrosion resistance
- ***Only for industrial applications***
Specifications:
- Size (Shackle Body Thickness): 5/16″ (8mm)
- Throat Depth: 1.46″ (37mm)
- Throat Opening: 0.63″ (16mm)
- Pin Type: Self-Locking Screw Pin
- Material: 316 Stainless Steel
- Working Load Limit: 1188 lbs (540 kg)
