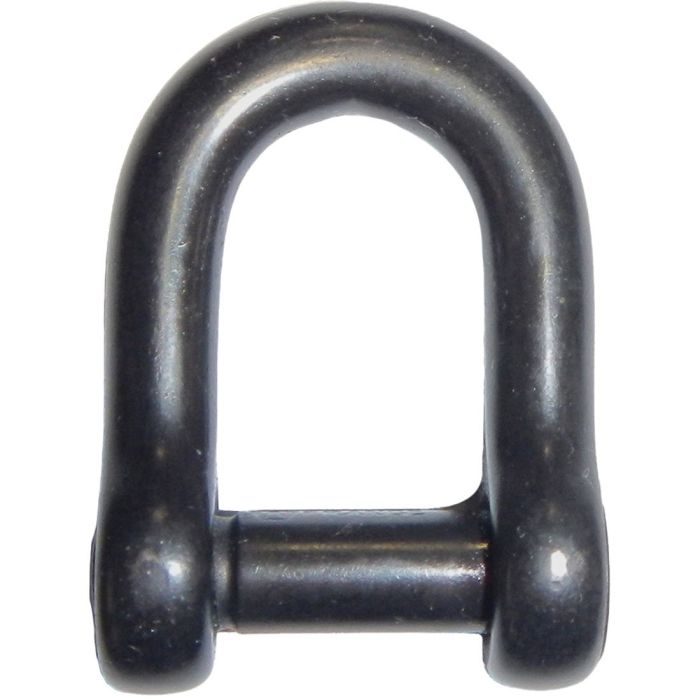

Wichard Self-Locking Allen Head D Shackle Stainless Steel (T316) 5/16″ – Black

The Wichard’s Allen Head Pin D Shackle is designed with a head pin does not stick out from the shackle’s body, thus eliminating any risk of snagging.

Features:

• Self-locking allen head pin D shackle forged in grade 316L stainless steel
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Fatigue resistance and corrosion resistance
• ***Only for industrial applications***

Specifications:

• Size (Shackle Body Thickness): 5/16″ (8mm)
• Throat Depth: 1.02″ (26mm)
• Throat Opening: 0.63″ (16mm)
• Pin Type: Self-Locking Screw Pin
• Material: 316 Stainless Steel
• Working Load Limit: 1188 lbs (540 kg)
