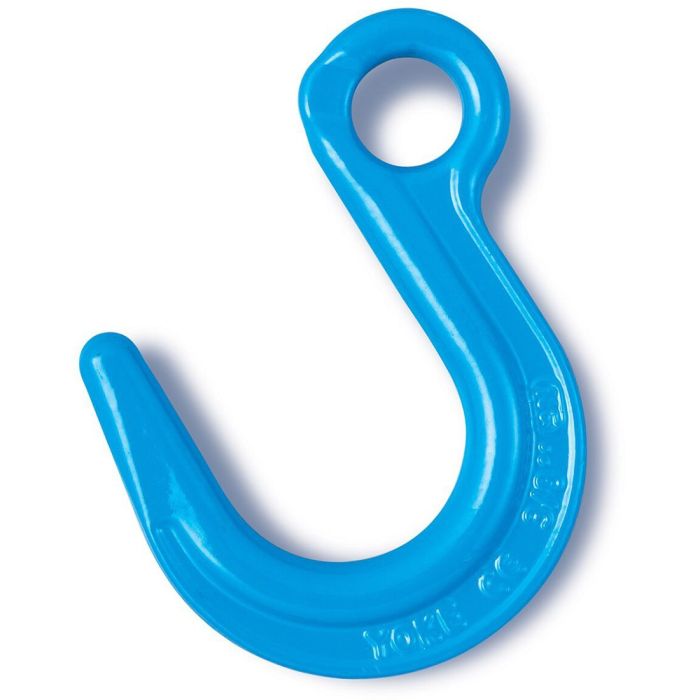

Yoke 1/2″ Grade 100 Eye Foundry Hook (X-047) (WLL 15,000 lbs)

Yoke Grade 100 Eye Foundry Hooks are designed for the assembly of chain slings where wide throat
openings are necessary.

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Testing according to DIN PAS 1061 and ASTM A952/A 952M
• Design Factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application
• Fits Chain Size: 1/2″
• Working Load Limit (WLL): 15,000 lbs (6.70 tons)
