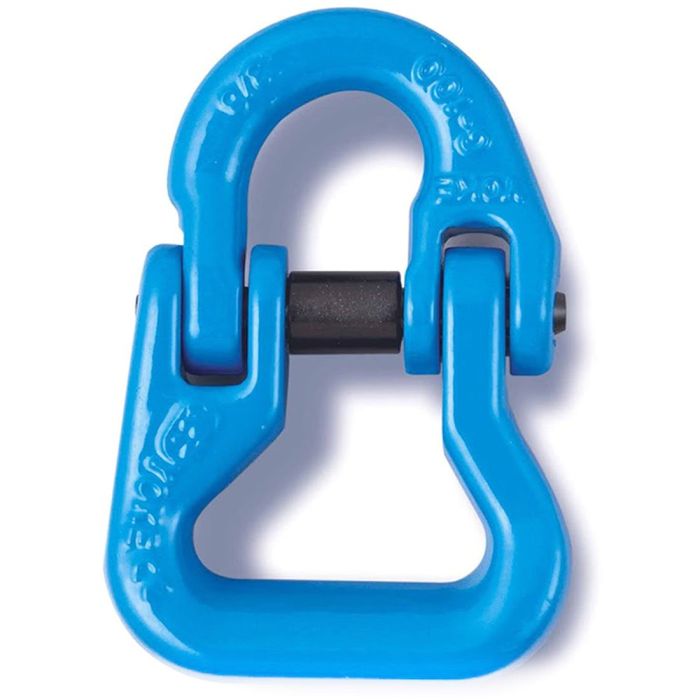

Yoke 1/4″ – 5/16″ Grade 100 Web Sling Connecting Link (X-016) (WLL 5700 lbs)

Yoke X-016 G-100 Web Sling Connecting Links are designed for attaching synthetic slings to fittings and hardware.

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Design Factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Web or Roundsling Width: 1.57″
• Fits Chain Size: 1/4″ – 5/16″
• Working Load Limit (WLL): 5700 lbs (2.50 tons)
