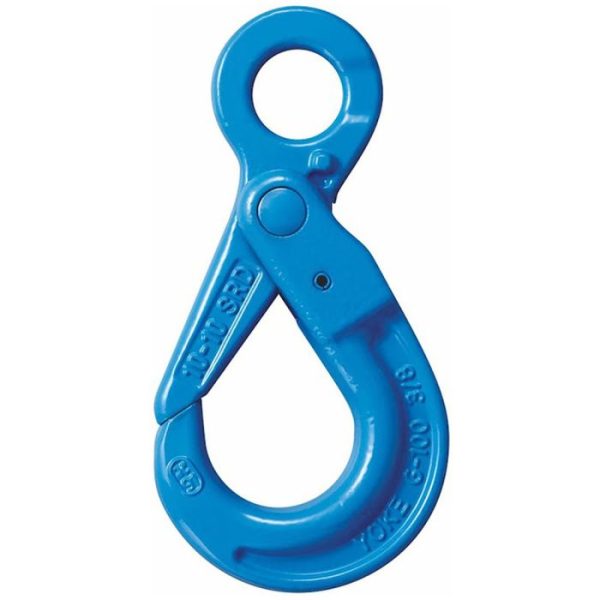

Yoke 1″ Grade 100 Eye Self-Locking Hook (X-025) (WLL 59,700 lbs)

Yoke X-025 G-100 Eye Self-Locking Hooks automatically lock when a load is applies for additional safety.

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Design Factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch
• Fits Chain Size: 1″
• Working Load Limit (WLL): 59,700 lbs (26.50 tons)
