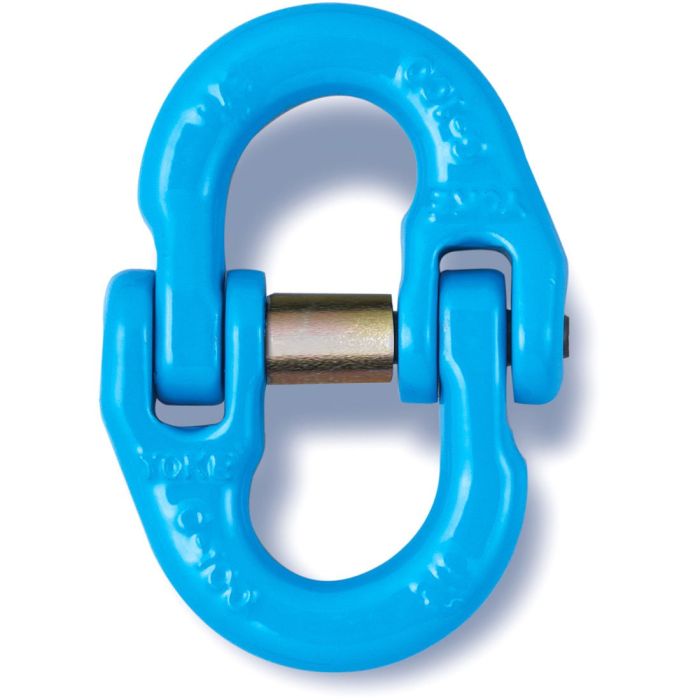

Yoke 3/4″ Grade 100 Connecting Link (X-015) (WLL 35,300 lbs)

Yoke X-015 G-100 Connecting Links are designed for attaching chain to fittings and hardware.

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASTM A952/A952M, DIN PAS 1061
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Design Factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Suitable for use with both Grade 80 and Grade 100 chain
• Fits Chain Size: 3/4″
• Working Load Limit (WLL): 35,300 lbs (16.00 tons)
