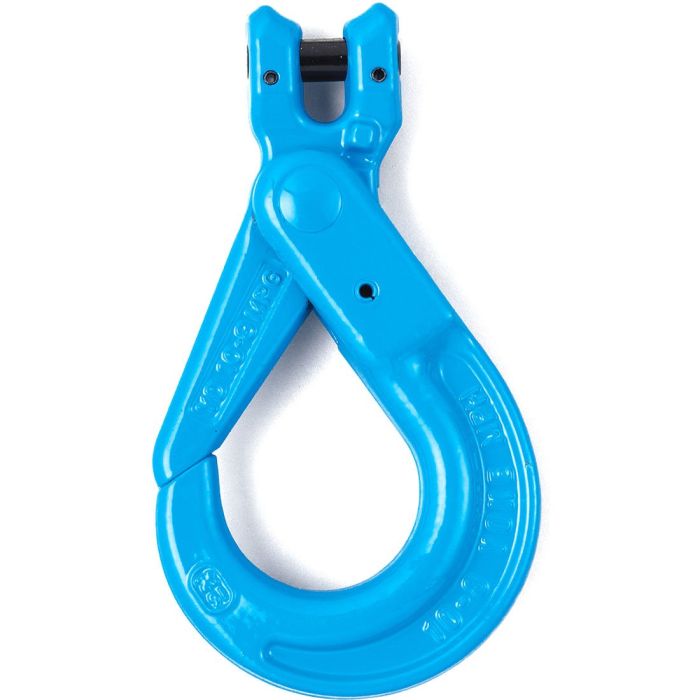

Yoke X-026 G-100 Clevis Self-Locking Hooks automatically lock when a load is applies for additional safety.
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 1 and ASME B30.26
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch
- Fits Chain Size: 3/8″
- Working Load Limit (WLL): 8800 lbs (4.00 tons)
