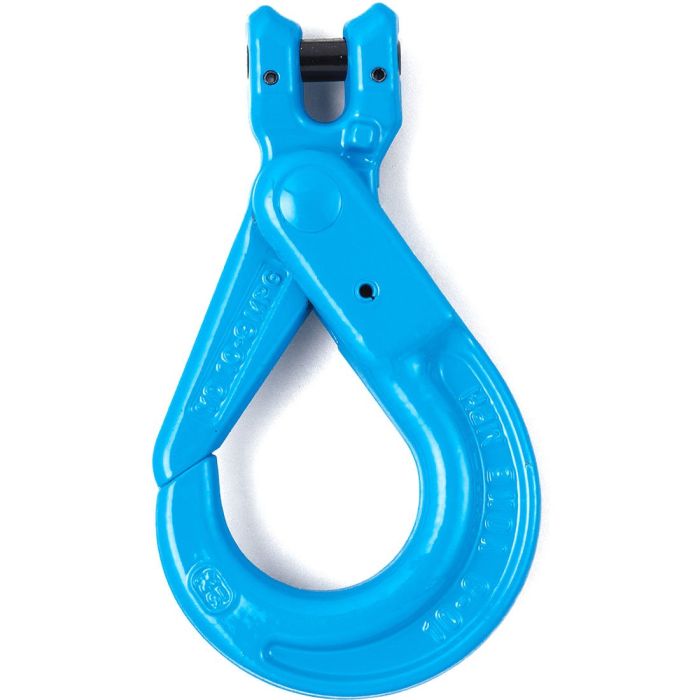

Yoke 5/8″ Grade 100 Clevis Self-Locking Hook (X-026) (WLL 22,600 lbs)

Yoke X-026 G-100 Clevis Self-Locking Hooks automatically lock when a load is applies for additional safety.

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677- 1 and ASME B30.26
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Design Factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch
• Fits Chain Size: 5/8″
• Working Load Limit (WLL): 22,600 lbs (10.00 tons)
