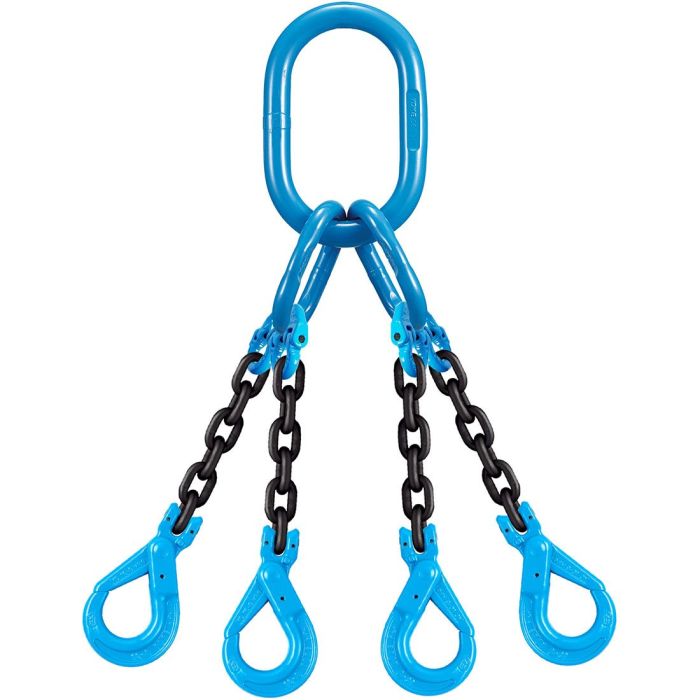

Yoke 5/8″x5′ Type QOSL 4-Leg Grade 100 Chain Sling (58,700 lbs WLL)

Yoke grade 100 bridle chain slings are fabricated using grade 100 Yoke fittings and premium domestic grade 100 chain. All components are individually proof tested prior to assembly. Components meet ASTM A973 standards and meet or exceed ASME standards, making Yoke grade 100 chain slings a smart and viable choice for your overhead lifting needs.

• Chain Size: 5/8″
• Grade: 100
• Reach (Bearing Point to Bearing Point): 5′
• Hook Type: Self-locking hooks
• Capacities:
  • @ 60 Degrees: 58,700 lbs
  • @ 45 Degrees: 47,900 lbs
  • @ 30 Degrees: 33,900 lbs
• Each component marked with batch code, product code, size, and grade
• Metal tag with size, reach, capacity, and serial number installed on all lifting chain slings
• Yoke grade 100 fittings made in Taiwan
• Grade 100 chain
