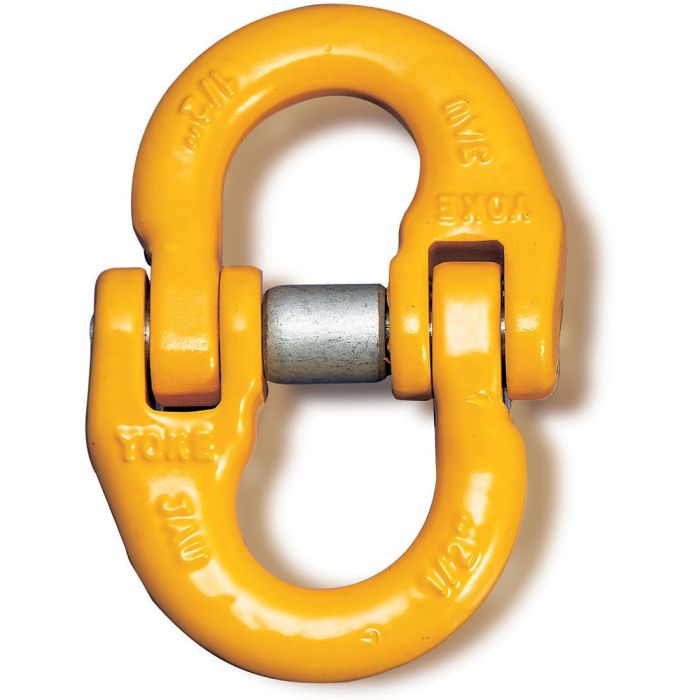

Yoke 8-015 Grade 80 Connecting Link 1-1/4″ (WLL 72,300 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 32mm (1-1/4″)
• Working Load Limit (WLL): 31.50 tons (72,300 lbs)

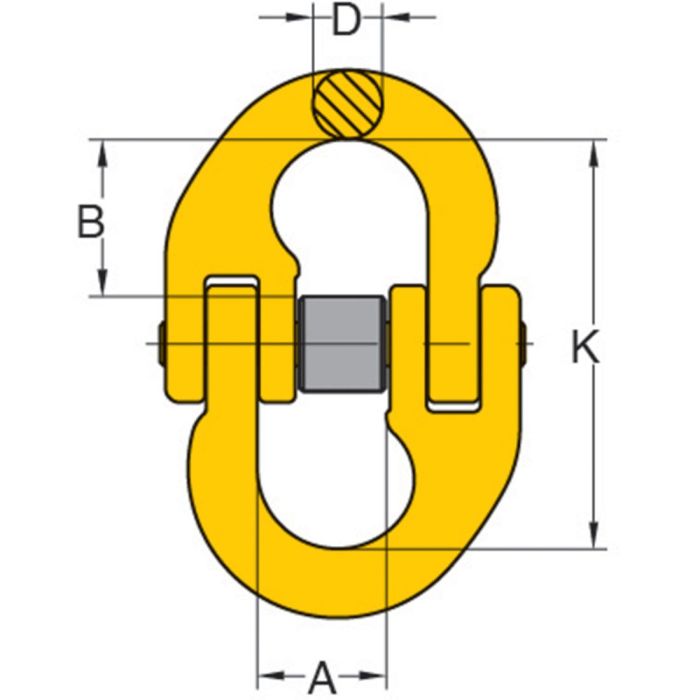

• (A): 69mm (2-11/16″)
• (B): 79mm (3-1/8″)
• (D): 36mm (1-7/16″)
• (K): 202mm (7-15/16″)
• Material: Alloy Steel
• Finish: Painted
