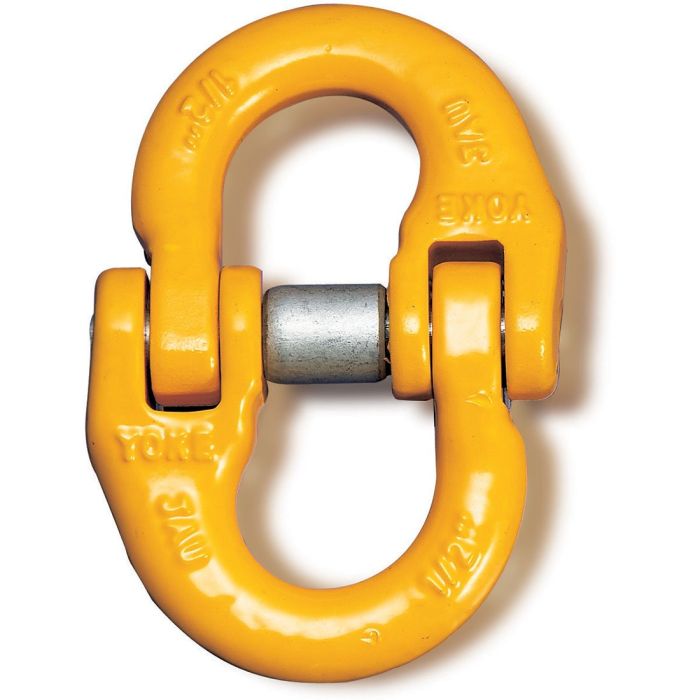

Yoke 8-015 Grade 80 Connecting Link 1/2″ (WLL 12,000 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 13mm (1/2″)
• Working Load Limit (WLL): 5.30 tons (12,000 lbs)

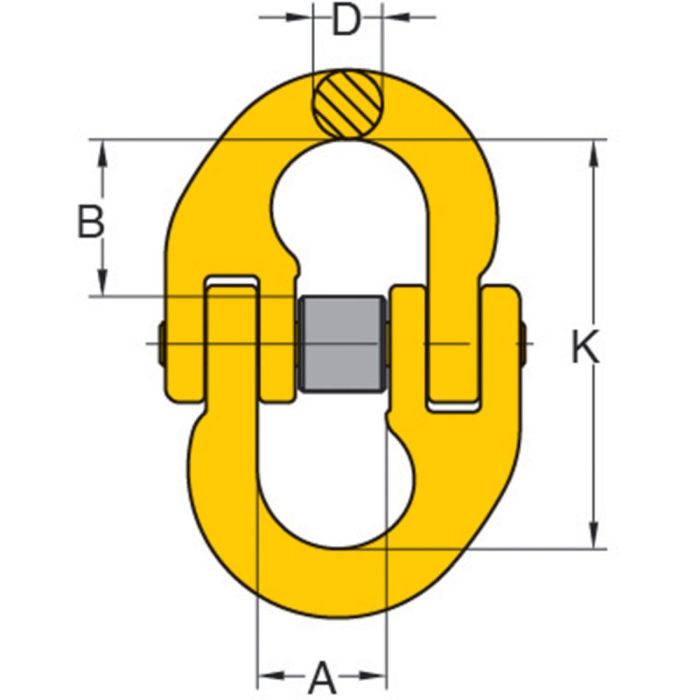

• (A): 30mm (1-3/16″)
• (B): 35mm (1-3/8″)
• (D): 16mm (5/8″)
• (K): 91mm (3-9/16″)
• Material: Alloy Steel
• Finish: Painted
