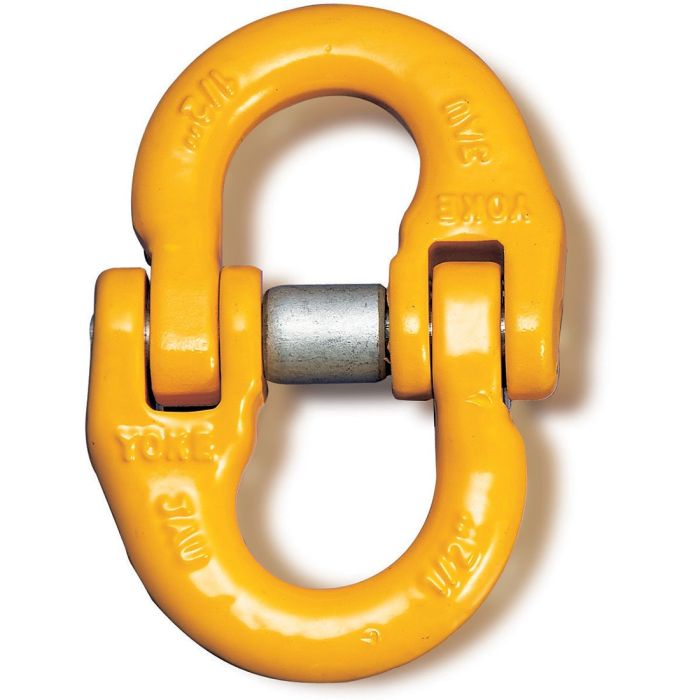

Yoke 8-015 Grade 80 Connecting Link 1/4″ – 5/16″ (WLL 4409 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 7mm – 8mm (1/4″ – 5/16″)
• Working Load Limit (WLL): 2.00 tons (4409 lbs)

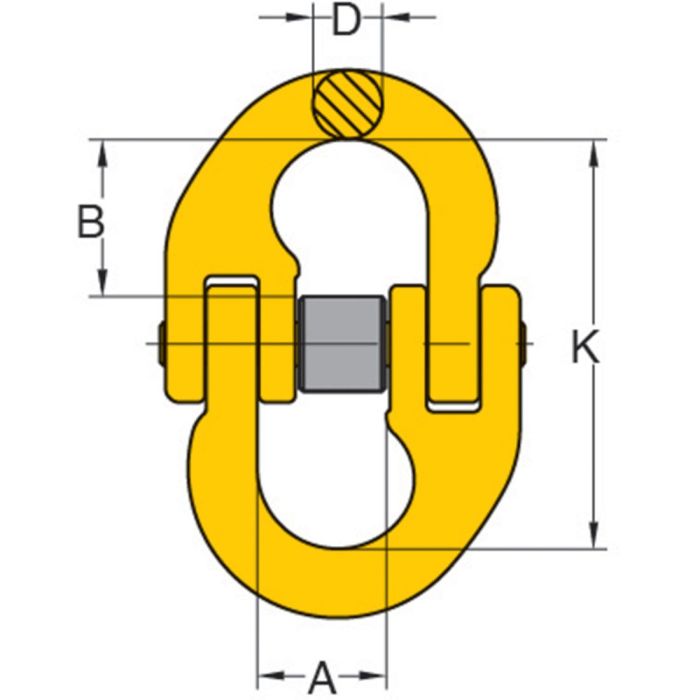

• (A): 18mm (11/16″)
• (B): 22mm (7/8″)
• (D): 9mm (3/8″)
• (K): 57mm (2-1/4″)
• Material: Alloy Steel
• Finish: Painted
