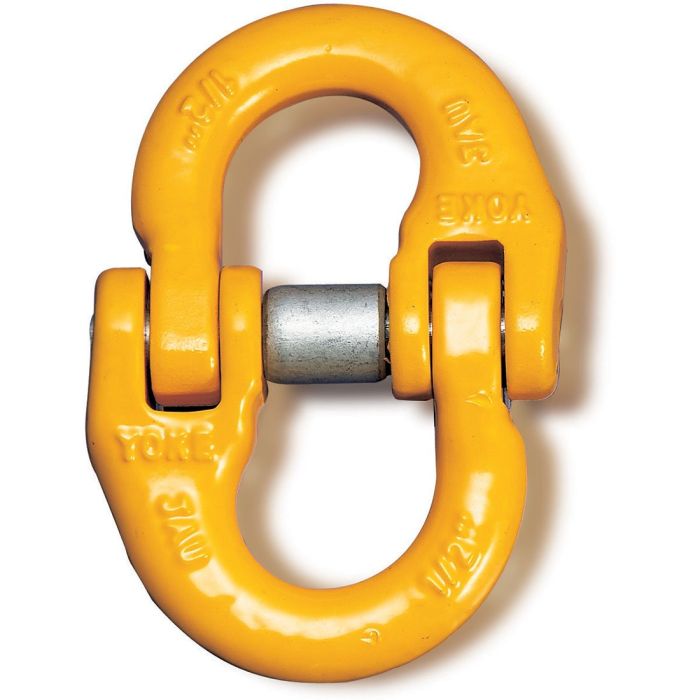

Yoke 8-015 Grade 80 Connecting Link 1″ (WLL 47,700 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 26mm (1″)
• Working Load Limit (WLL): 21.20 tons (47,700 lbs)

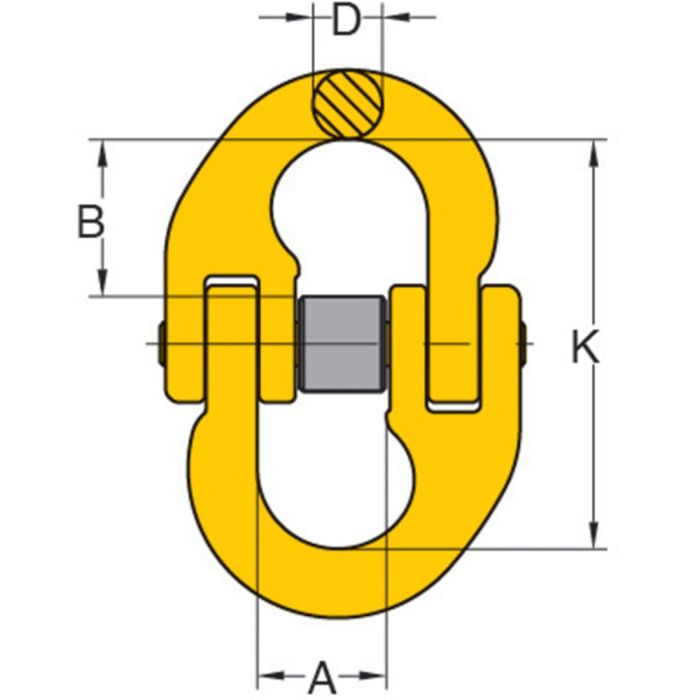

• (A): 55mm (2-3/16″)
• (B): 62mm (2-7/16″)
• (D): 30mm (1-3/16″)
• (K): 162mm (6-3/8″)
• Material: Alloy Steel
• Finish: Painted
