Yoke 8-015 Grade 80 Connecting Link 3/4″ (WLL 28,300 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 18mm – 20mm (3/4″)
• Working Load Limit (WLL): 12.50 tons (28,300 lbs)

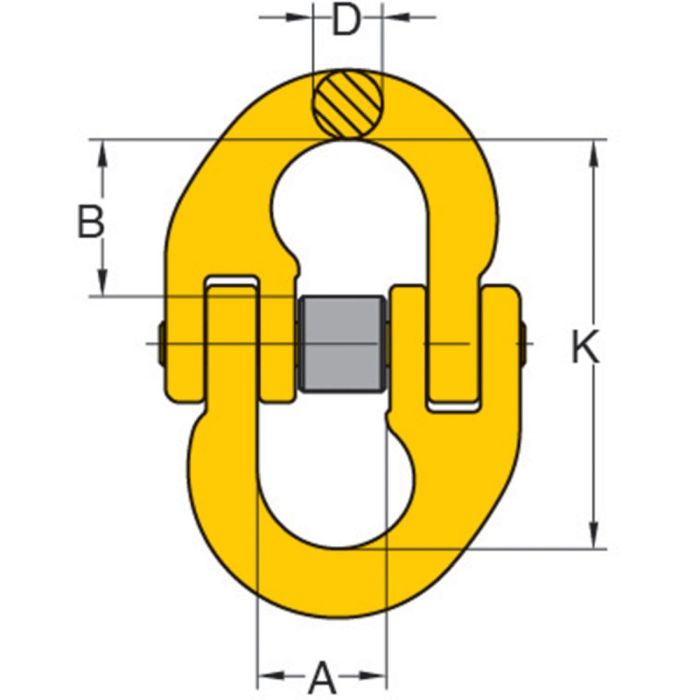

• (A): 42mm (1-5/8″)
• (B): 46mm (1-13/16″)
• (D): 22mm (7/8″)
• (K): 122mm (4-13/16″)
• Material: Alloy Steel
• Finish: Painted
