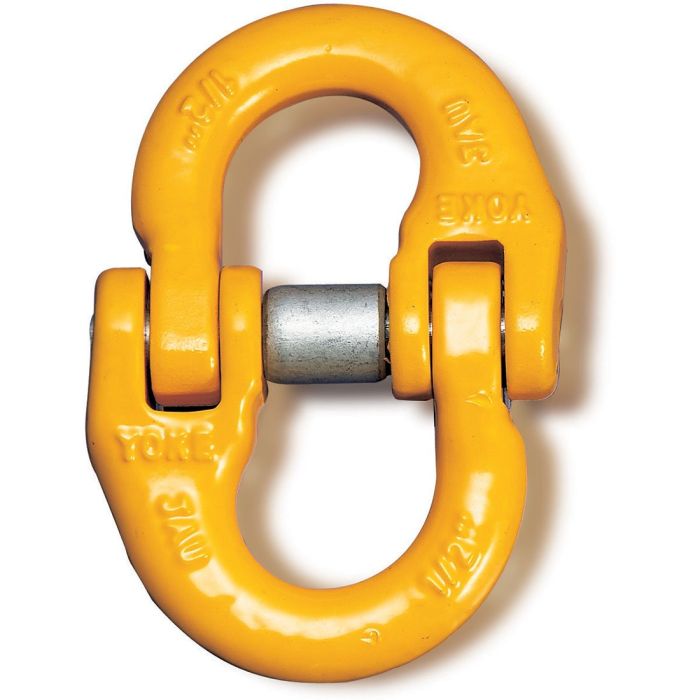

Yoke 8-015 Grade 80 Connecting Link 3/8″ (WLL 6944 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 10mm (3/8″)
• Working Load Limit (WLL): 3.15 tons (6944 lbs)

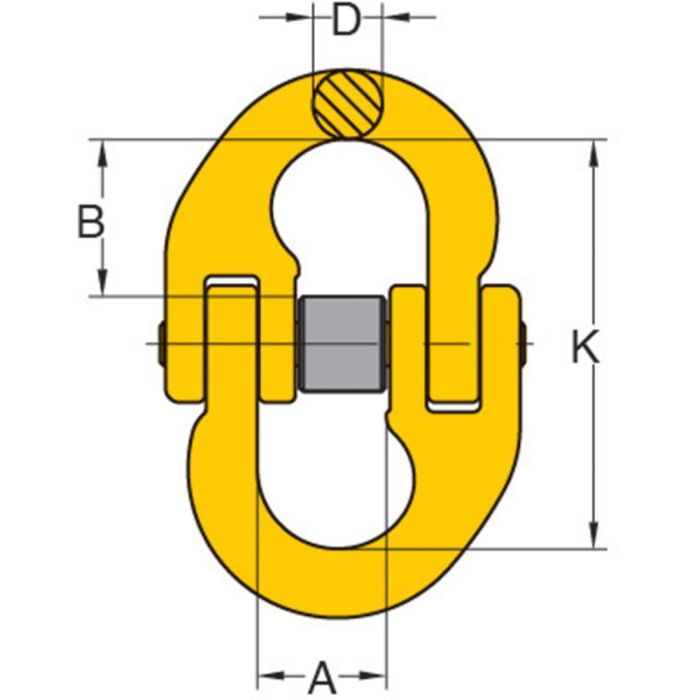

• (A): 25mm (1″)
• (B): 26mm (1-1/32″)
• (D): 11mm (7/16″)
• (K): 68mm (2-11/16″)
• Material: Alloy Steel
• Finish: Painted
