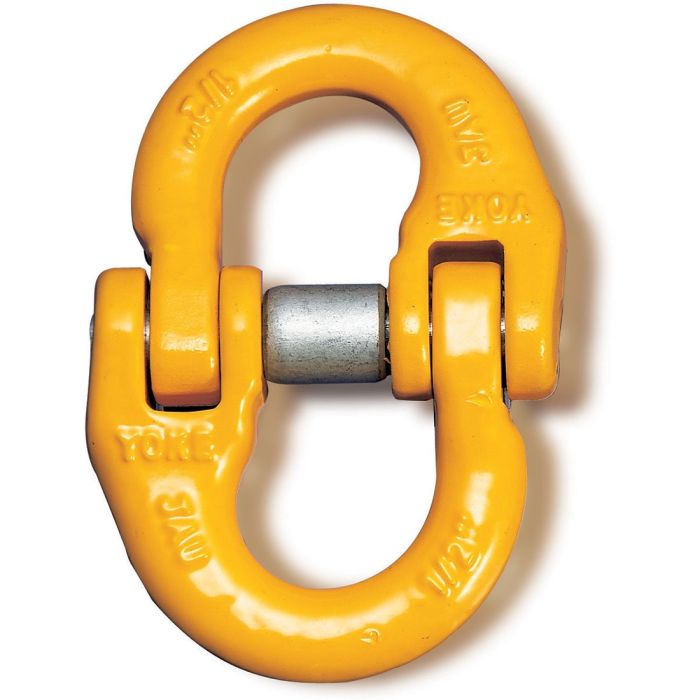

Yoke 8-015 Grade 80 Connecting Link 5/8″ (WLL 18,100 lbs)

Yoke 8-015 G-80 Connecting Links are designed for attaching chain to fittings and hardware.

Features:

• Quenched and Tempered Alloy Steel
• Design factor 4:1 proof tested and certified
• Tested according to DIN EN 1677
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

Specifications:

• Fits Chain: 16mm (5/8″)
• Working Load Limit (WLL): 8.00 tons (18,100 lbs)
• (A): 36mm (1-7/16″)
• (B): 38mm (1-1/2″)
• (D): 19mm (3/4″)
• (K): 100mm (3-15/16″)
• Material: Alloy Steel
• Finish: Painted
